| Item |
Specification |
| Printing Technology |
Fused Deposition Modeling |
| Body |
Build Volume (W*D*H) |
256*256*256 mm³ |
| Chassis |
Plastic and Steel |
| Outer Frame |
Plastic and Glass |
| Physical Dimensions |
Physical Dimensions |
392*406*478 mm³ |
| Net Weight |
14.9 kg |

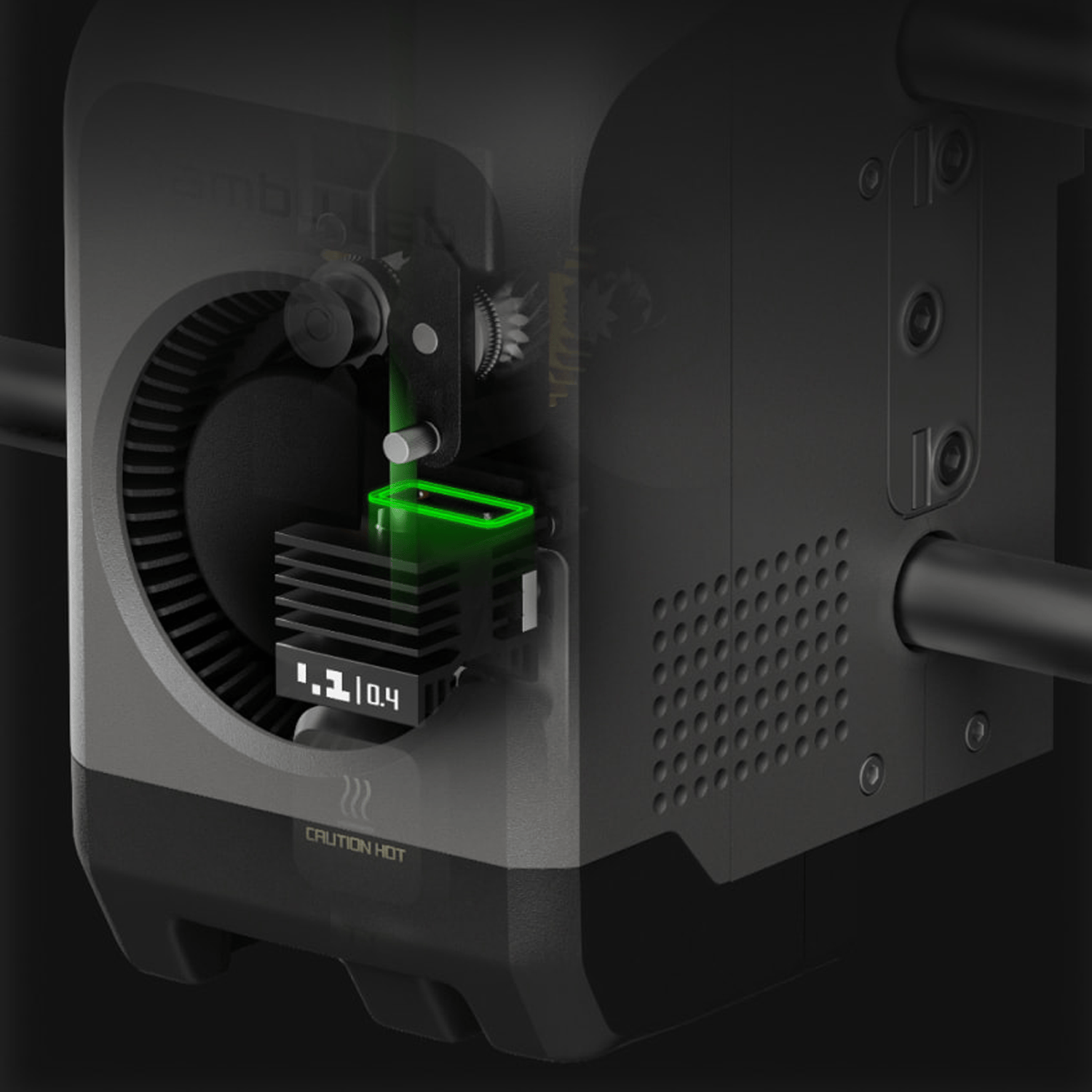

| Toolhead |
Extruder Gear |
Hardened Steel |

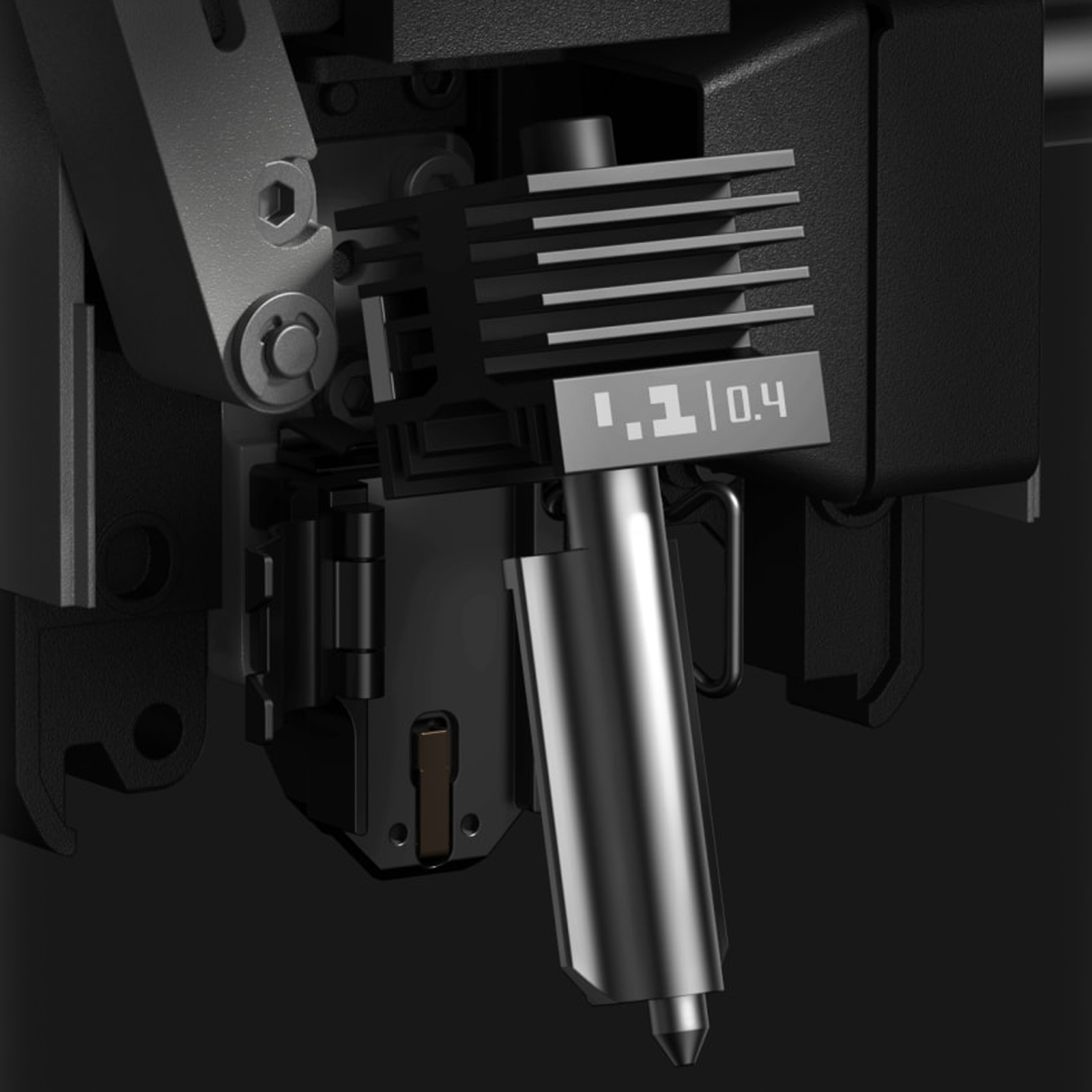

| Nozzle |
Hardened Steel |
| Max Nozzle Temperature |
300 °C |
| Included Nozzle Diameter |
0.4 mm |
| Supported Nozzle Diameter |
0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |

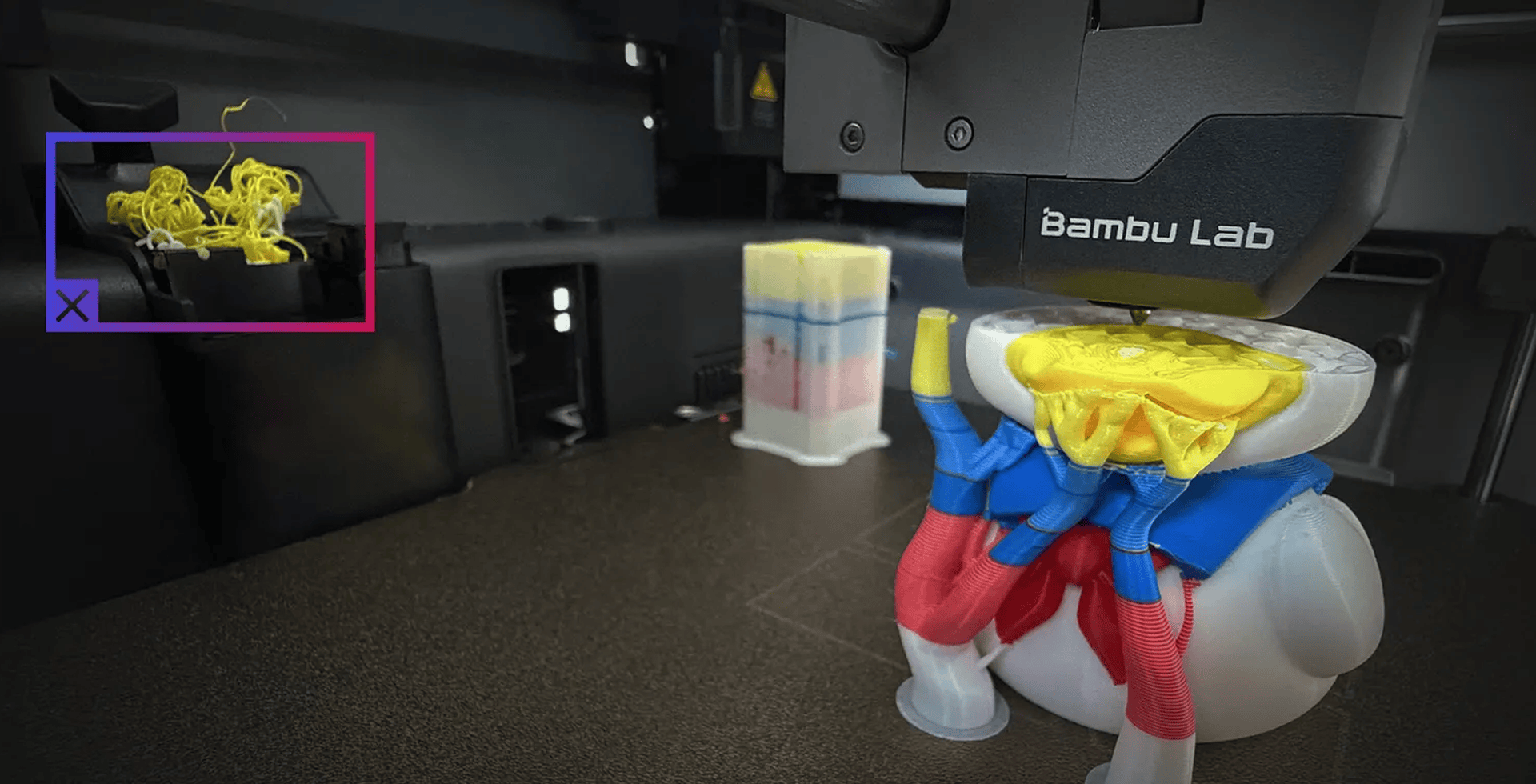

| Filament Cutter |
Built-in |
| Filament Diameter |
1.75 mm |

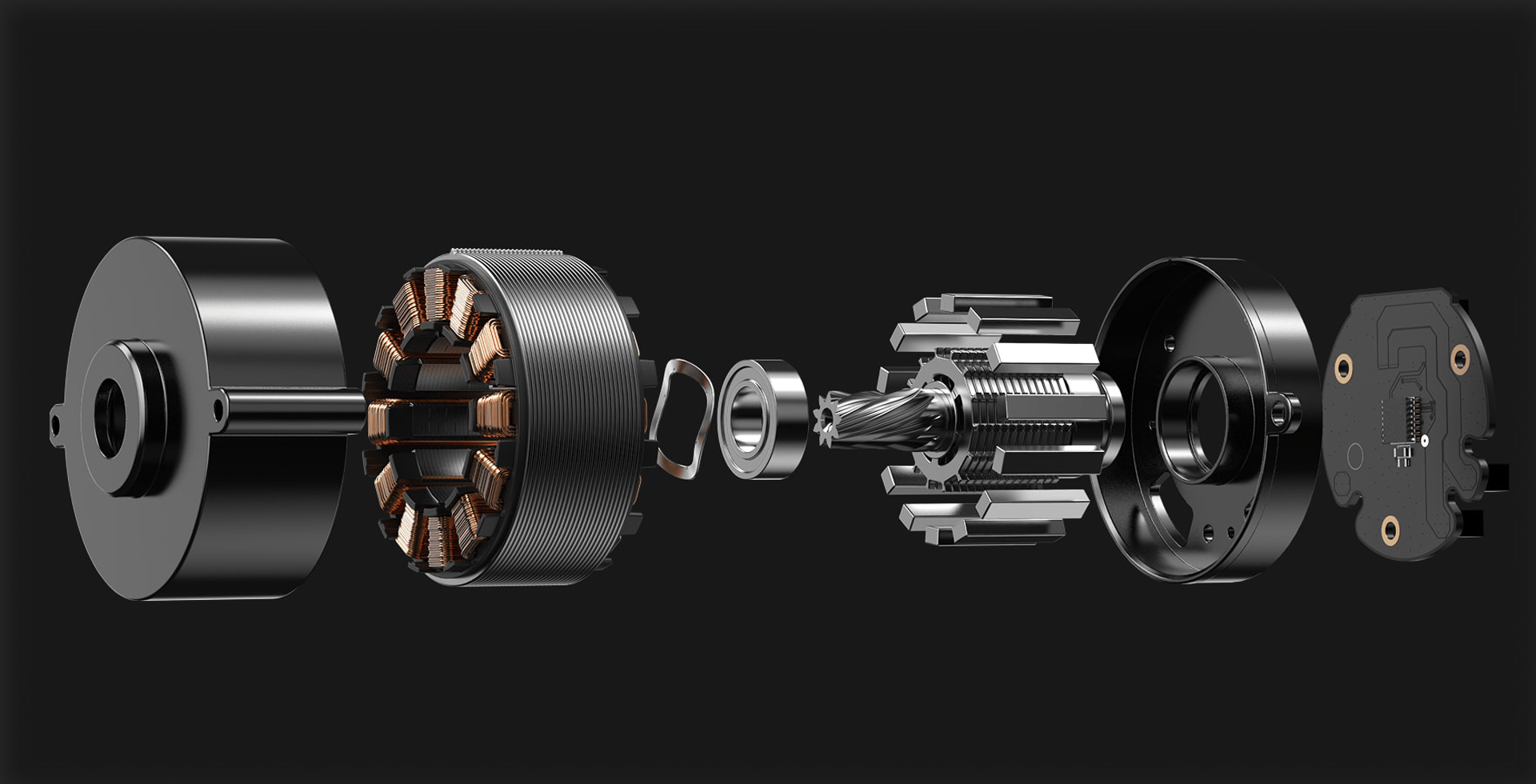

| Extruder Motor |
Bambu Lab High-precision Permanent Magnet Synchronous Motor |
| Heatbed |
Build Plate Material |
Flexible Steel Plate |
| Included Build Plate Type |
Textured PEI Plate |
| Supported Build Plate Type |
Textured PEI plate, Smooth PEI Plate, Cool Plate SuperTack |
| Max Heatbed Temperature |
110 °C |
| Speed |
Max Speed of Toolhead |
600 mm/s |
| Max Acceleration of Toolhead |
20,000 mm/s² |
| Max Flow for Hotend (Standard Flow Hotend) |
40 mm³/s
(Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature) |

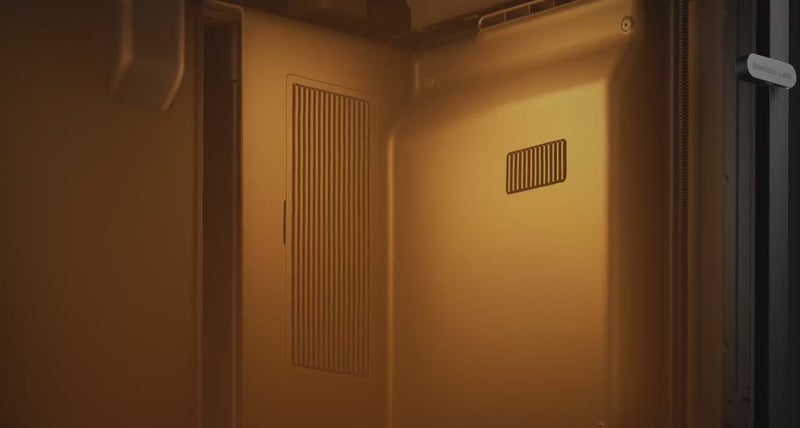

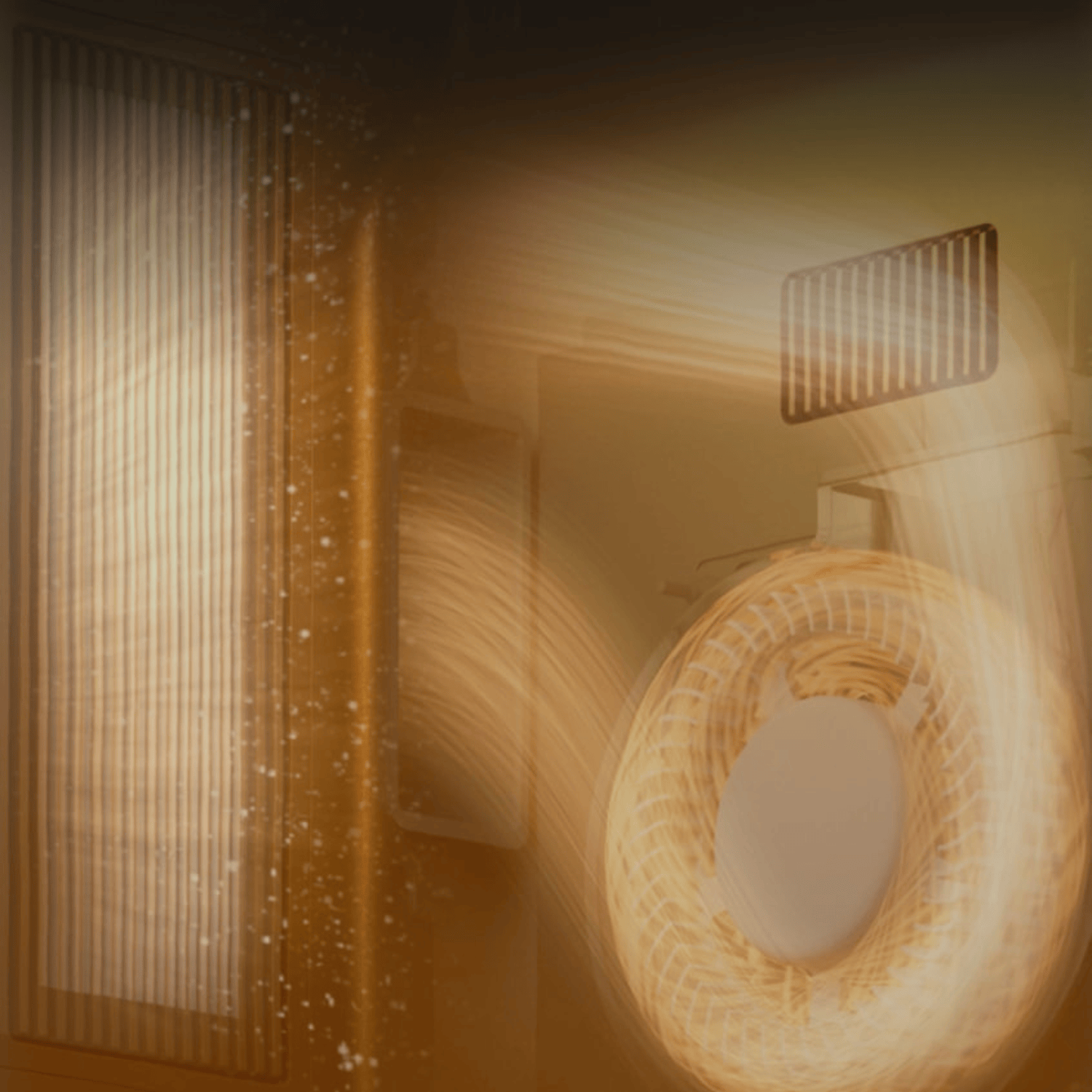

| Air Purification |
Activated Carbon Filter Type |
Granulated Coconut Shell |
| VOC Filtration |
Supported |
| Particulate Matter Filtration |
Supported |

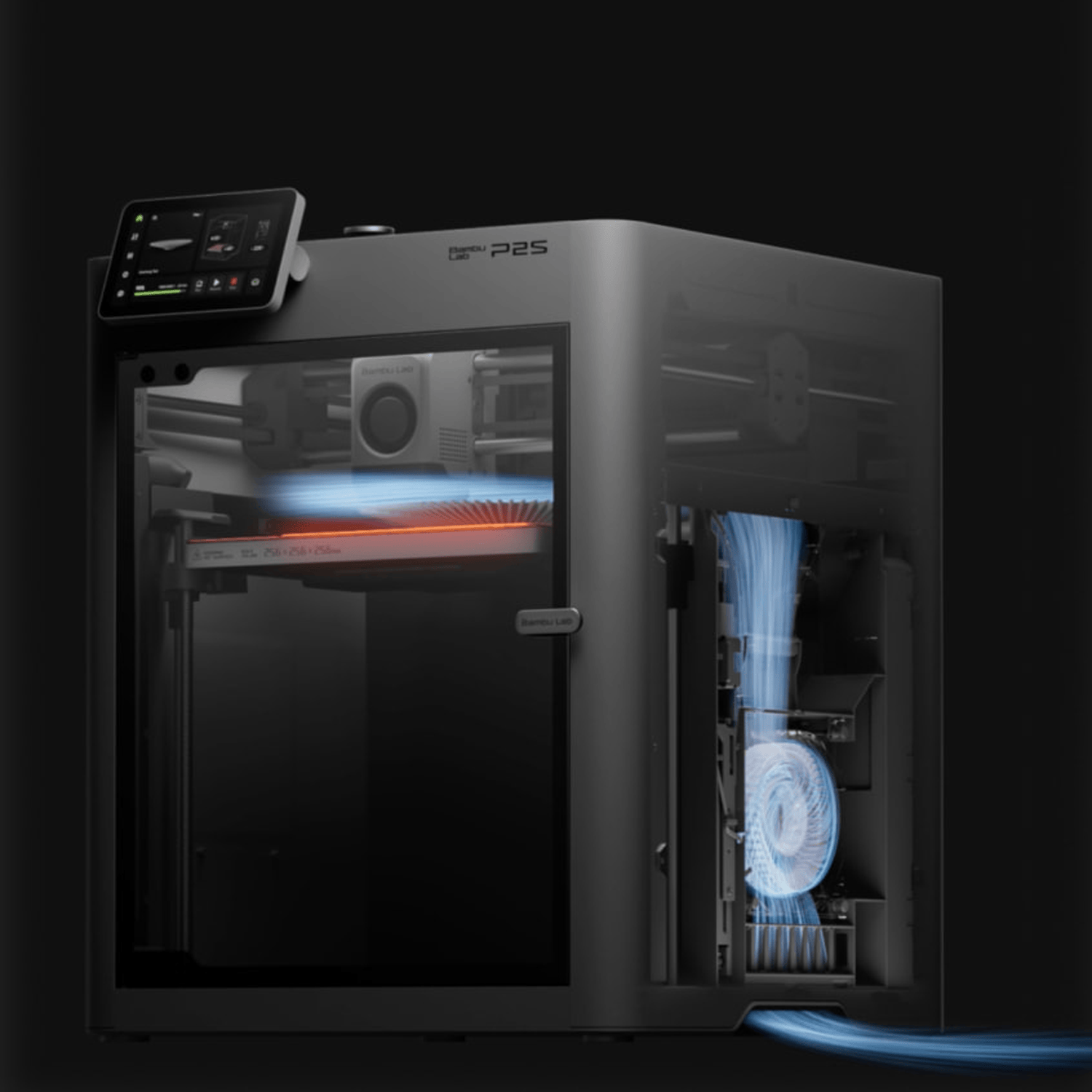

| Cooling |
Part Cooling Fan |
Closed Loop Control |
| Cooling Fan for Hotend |
Closed Loop Control |
| Auxiliary Part Cooling Fan |
Closed Loop Control |
| Filament Supported |
PLA, PETG, ABS, ASA, TPU, Support for PLA, Support for PLA/PETG, Support for ABS, PET, PA, PC, PVA, PLA-CF, PETG CF, ABS GF, ASA-CF, PA6-CF, PA6-GF, PAHT CF, PPA-CF, PET CF |
| Sensor |

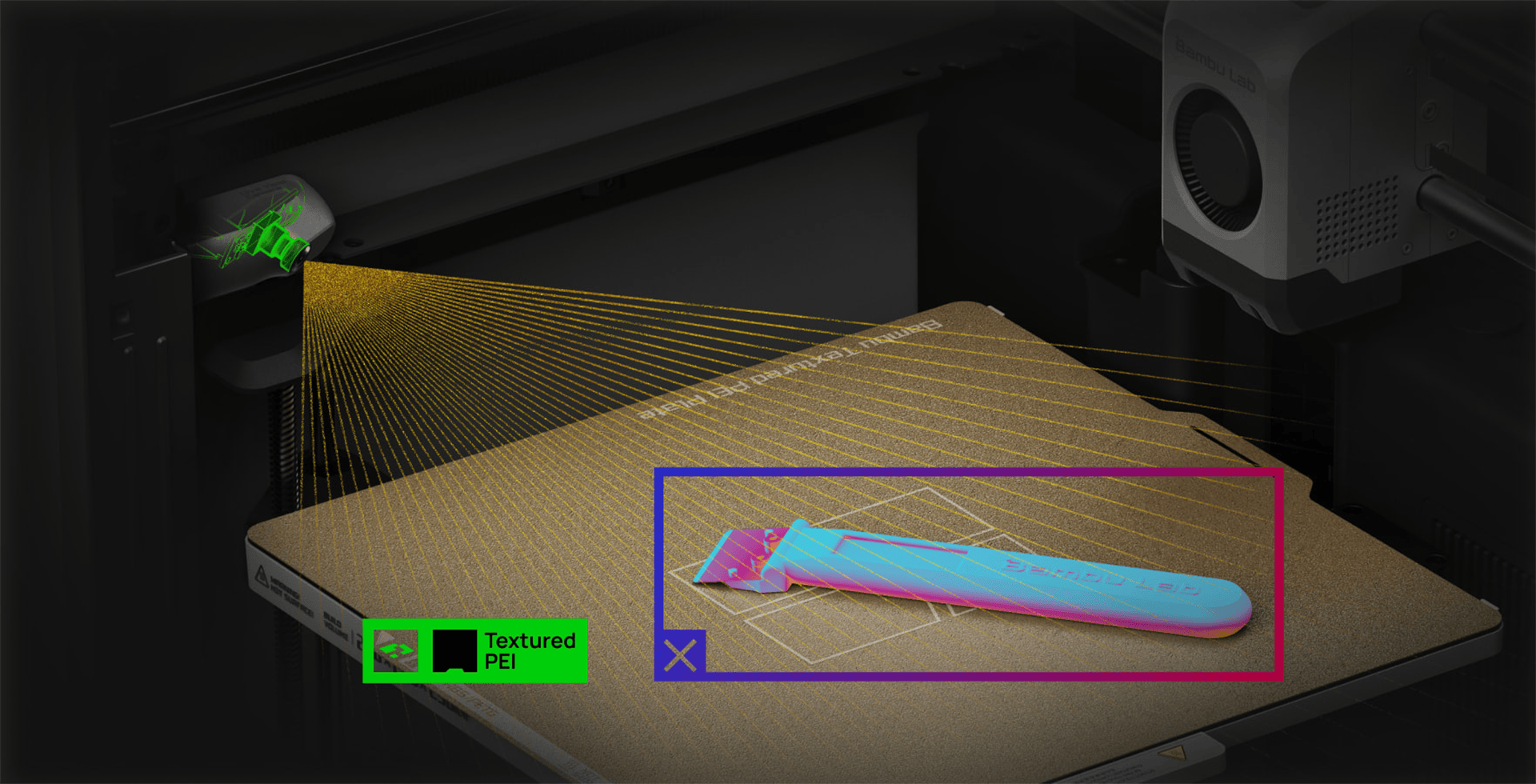

Camera |
Built-in; 1920*1080; 30 fps HD |
| Door Sensor |
Supported |
| Filament Run Out Sensor |
Supported |

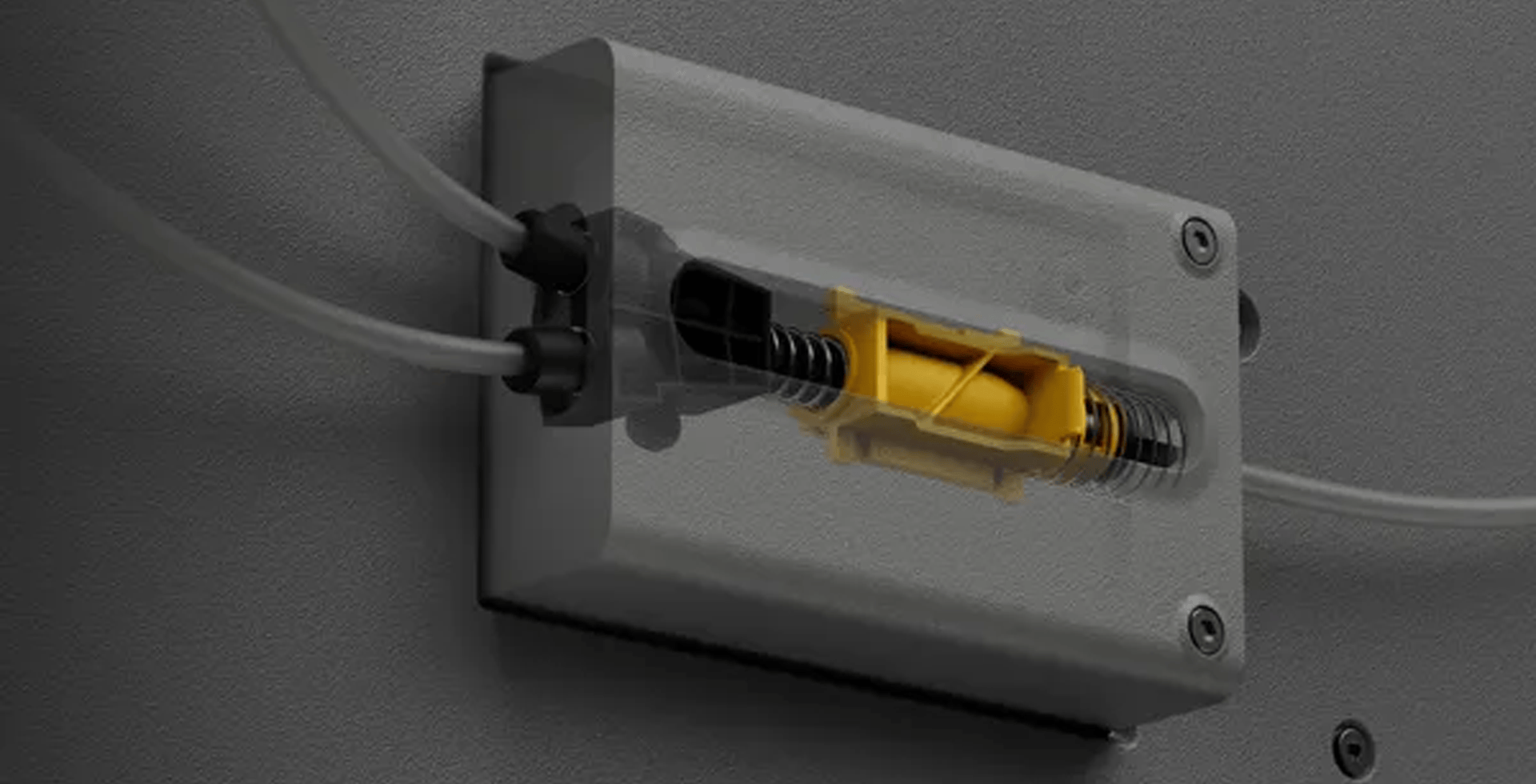

| Filament Tangle Sensor |
Supported |
| Filament Odometry |
Supported with AMS |
| Power Loss Recovery |
Supported |
| Electrical Requirements |
Voltage |
100-120 VAC / 200-240 VAC, 50/60 Hz |
| Max Power* |
1200 W@220 V / 1000 W@110 V |
| PLA Steady-State Power |
200 W@220 V / 200 W@110 V(PLA printing) |
| Electronics |

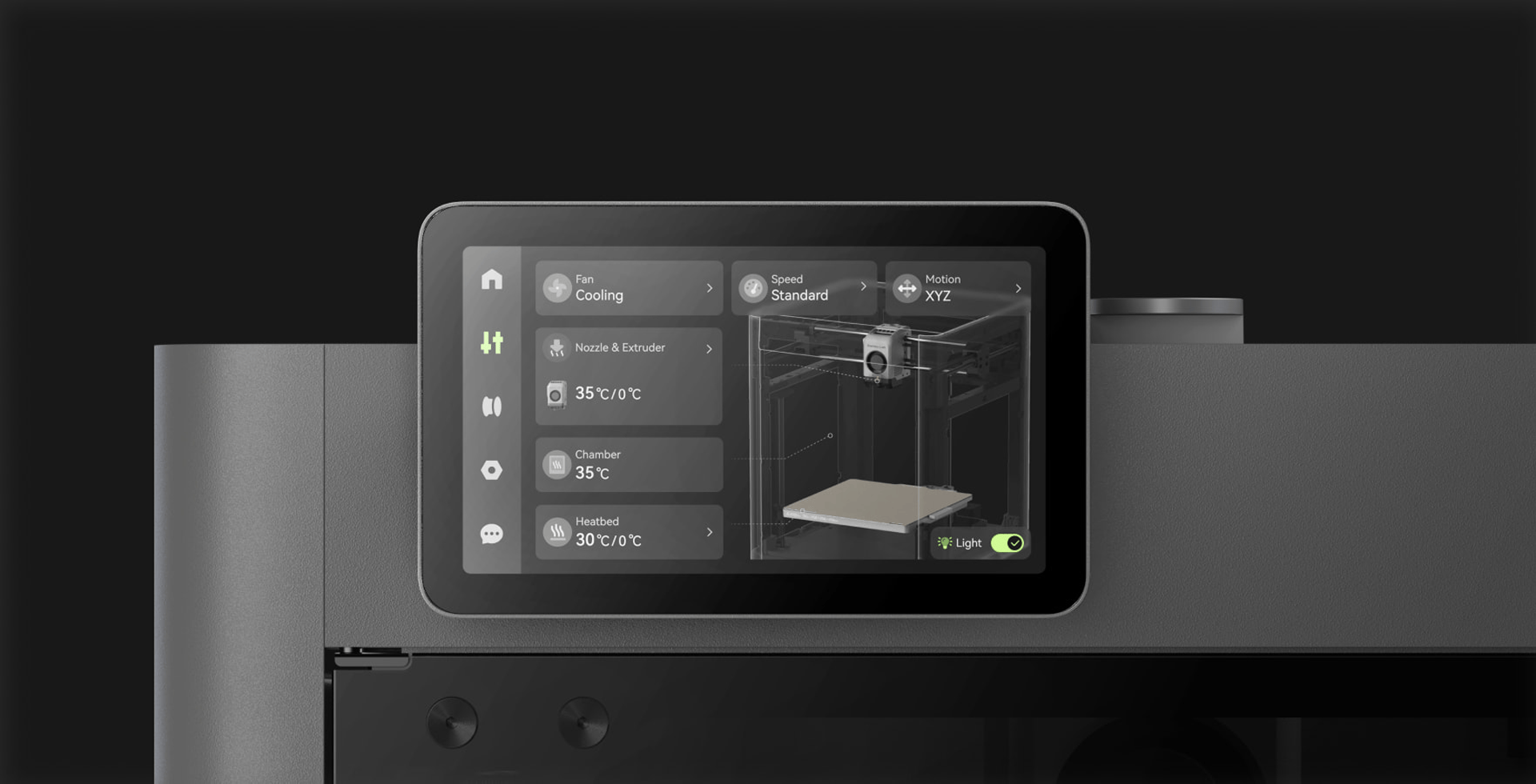

Touchscreen |
5-inch 854*480 Touchscreen |
| Storage |
Built-in 8 GB EMMC and USB Port |
| Control Interface |
Touchscreen, mobile App, PC App |
| Motion Controller |
Dual-core Cortex-M4 and Single-core Cortex-M7 |
| Application Processor |
Quad-core 1.5 GHz ARM A7 |
| Neural Processing Unit |
2 TOPS |
| Software |
Slicer |
Bambu Studio
Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported. |
| Supported Operating System |
MacOS, Windows, Linux |
| Network Control |
Ethernet |
Not Available |
| Wireless Network |
Dual-Band Wi-Fi |
| Network Kill Switch |
Not Available |
| Removable Network Module |
Not Available |
| 802.1X Network Access Control |
Not Available |
| Wi-Fi |
Operating Frequency |
2412 - 2472 MHz, 5150 - 5850 MHz (FCC/CE)
2400 - 2483.5 MHz, 5150 - 5850 MHz (SRRC) |
| Wi-Fi Transmitter Power (EIRP) |
2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC)
5 GHz Band3: <30 dBm (CE); <24 dBm (FCC)
5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE) |
| Wi-Fi Protocol |
IEEE 802.11 a/b/g/n |
