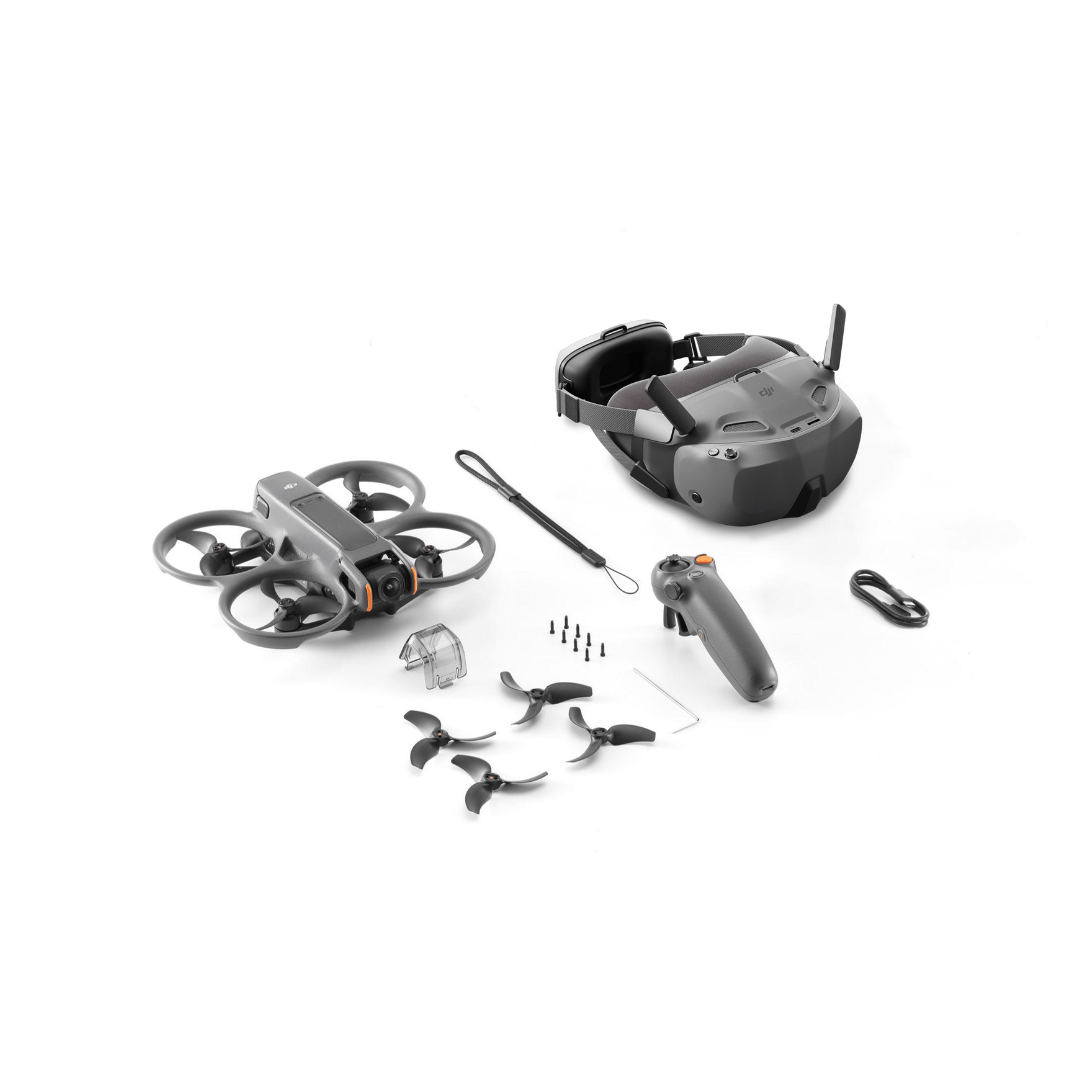

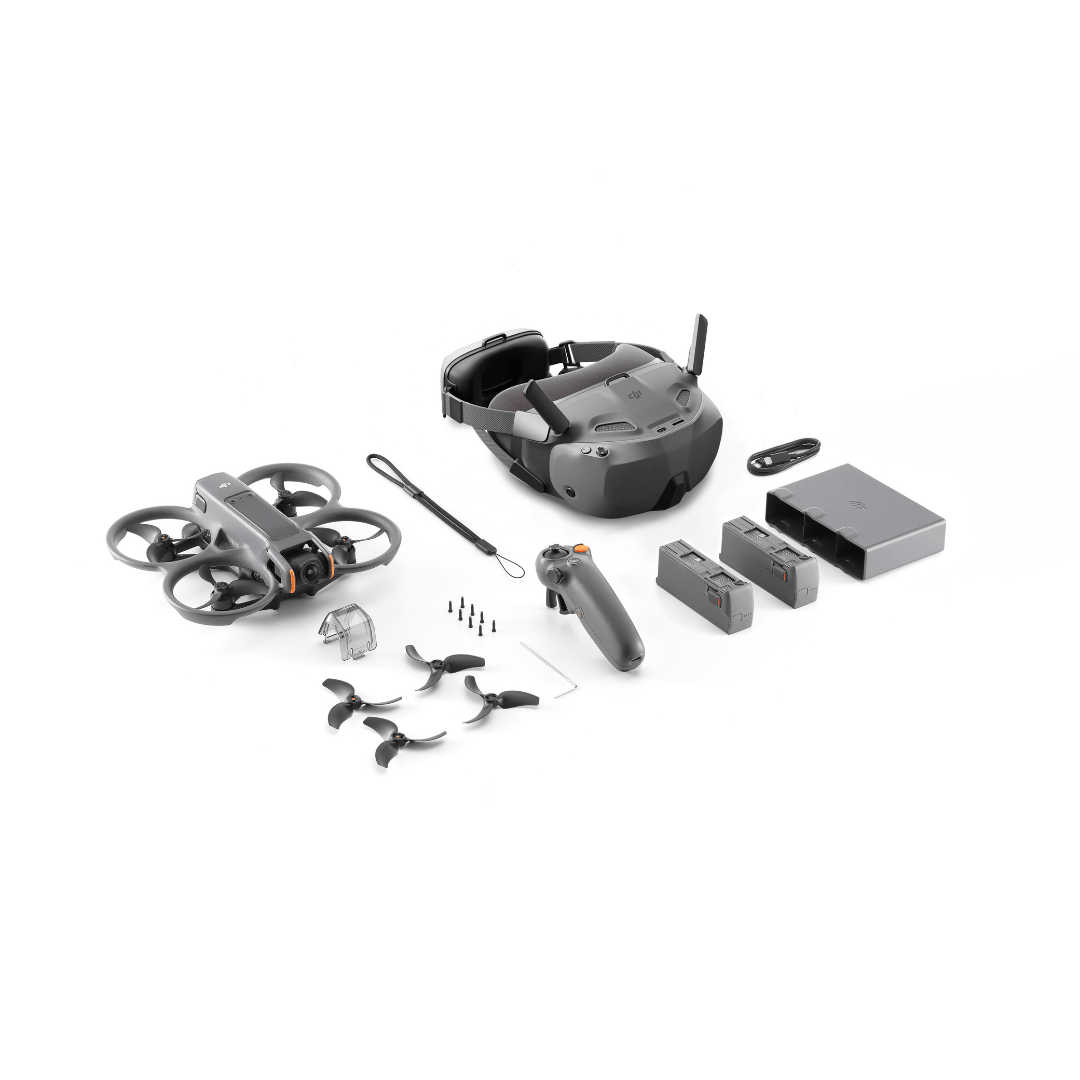

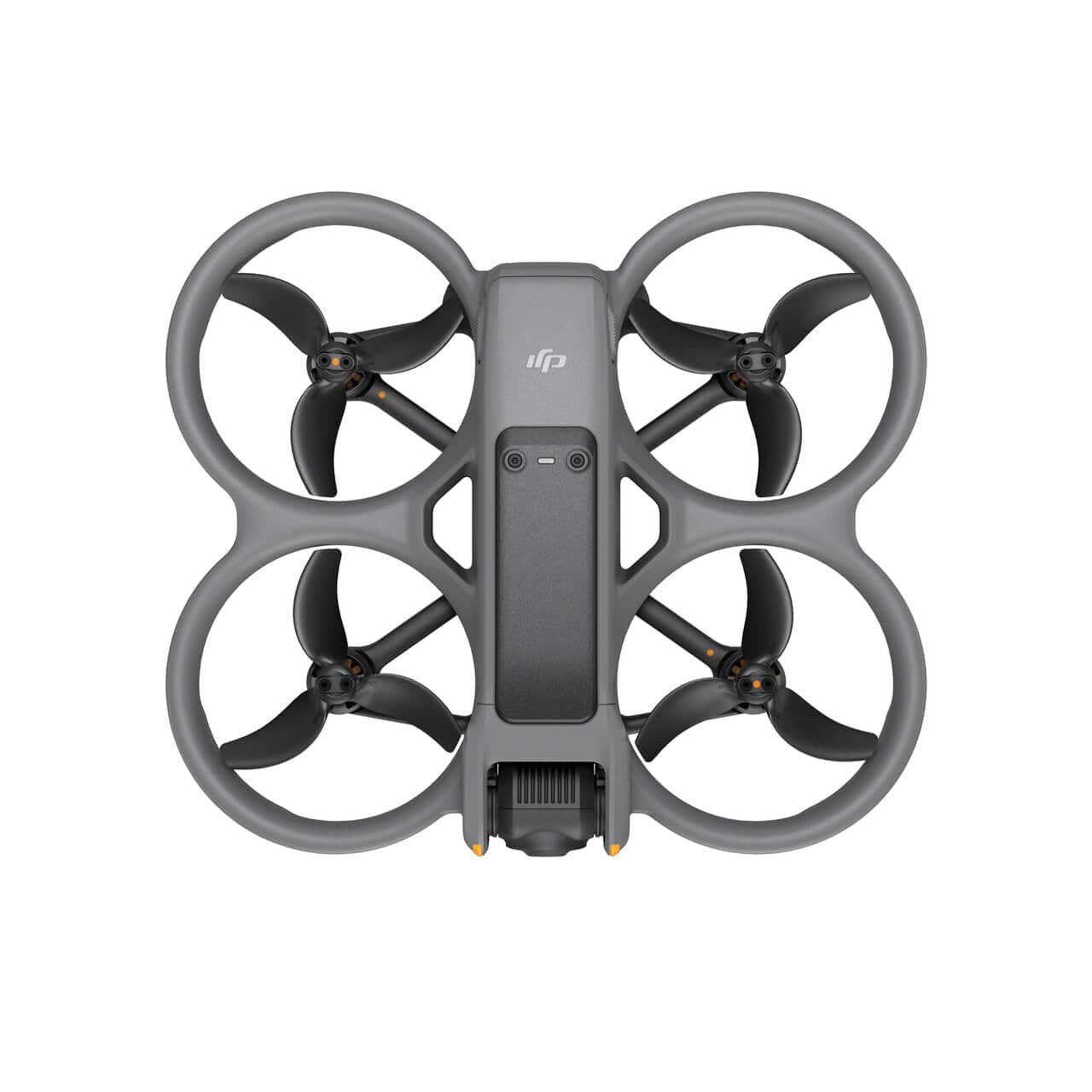

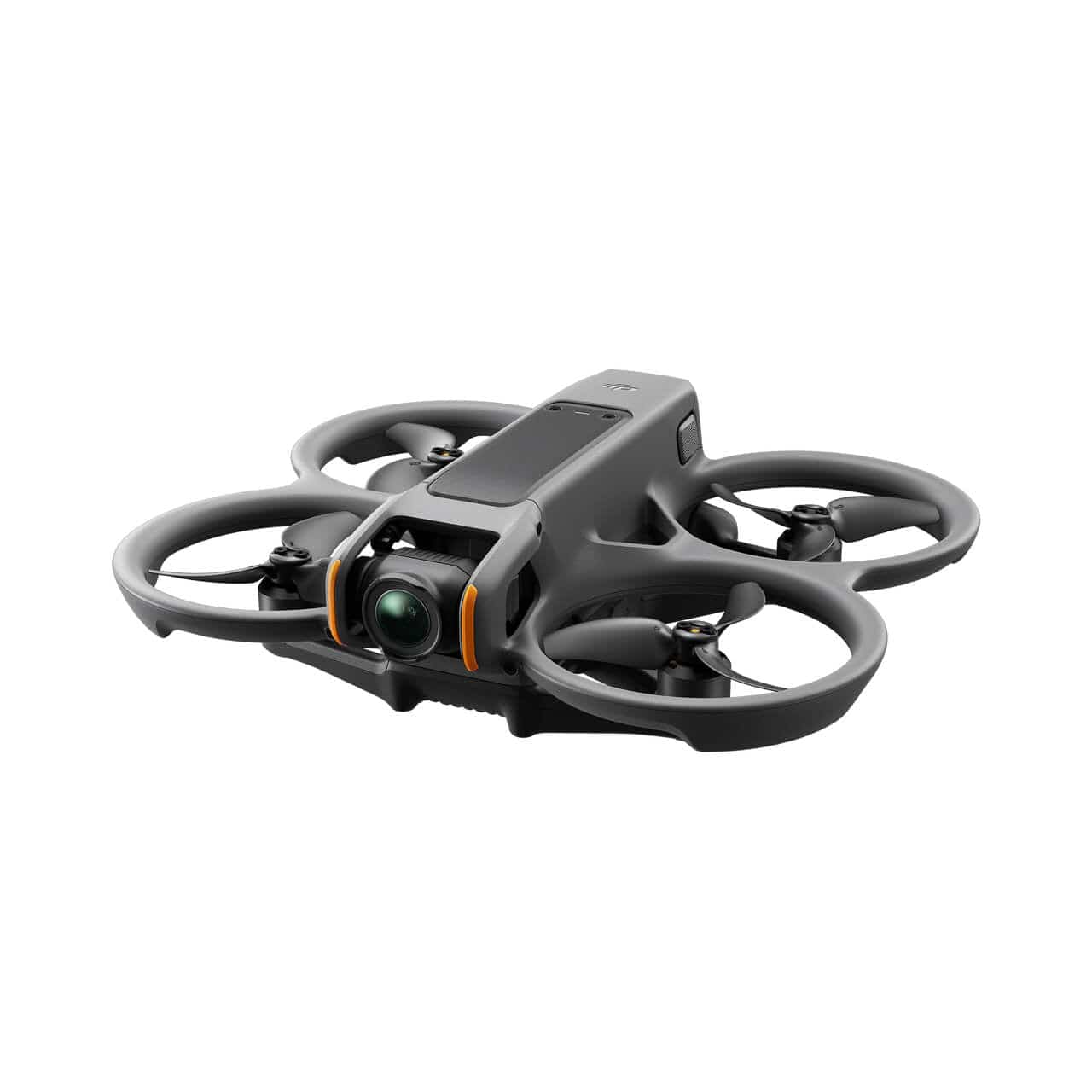

DJI Avata 2 FPV Drone Fly Smart Combo

Takeoff Weight

Approx. 377 g

Dimensions

185×212×64 mm (L×W×H)

Max Ascent Speed

Max Descent Speed

Max Horizontal Speed
(near sea level, no wind)

8 m/s (Normal mode)
‌16 m/s (Sport mode)
27 m/s (Manual mode)*

^{* No faster than 19 m/s with the Manual mode in the EU regions.}

Max Takeoff Altitude

5000 m

^{Measured in a windless environment when taking off from an altitude of 5000 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.}

Max Flight Time

Max Hovering Time

Max Flight Distance

13.0 km‌

^{‌Measured when flying forward at a speed of 43.2 kph in a windless environment at sea level, with camera parameters set to 1080p/30fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders on the goggles' screens during your flight.}

Max Wind Speed Resistance

10.7 m/s (Level 5)

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering accuracy range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)

Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with GNSS positioning)

Internal Storage

46 GB

Class

C1 (EU)

Image Sensor

Lens

ISO Range

100-25600 (Auto)
100-25600 (Manual)

Shutter Speed

Video: 1/8000-1/30 s
Photo: 1/8000-1/50 s

Max Image Size

4000×2256 (16∶9)
4000×3000 (4∶3)

Still Photography Mode

Single shot

Photo Format

JPEG

Video Resolution

4K (4∶3): 3840×2880@30/50/60fps
4K (16∶9): 3840×2160@30/50/60/100fps
2.7K (4∶3): 2688×2016@30/50/60fps
2.7K (16∶9): 2688×1512@30/50/120fps
1080p (4∶3): 1440×1080@30/50/120fps
1080p (16∶9): 1920×1080@30/50/120fps

Video Format

MP4 (H.264/H.265)

Max Video Bitrate

130 Mbps

Supported File System

exFAT

Color Mode

Standard
D-Log M

Camera FOV

Supports normal mode, wide-angle mode, and ultra-wide-angle mode.

EIS

Supports RockSteady 3.0+ and HorizonSteady
Can be disabled*

^{* When stabilization is turned off, footage captured with the wide-angle view supports offline stabilization Gyroflow.}

Stabilization

Single-axis mechanical gimbal (tilt)

Mechanical Range

Tilt: -95° to 90°

Controllable Range

Tilt: -85° to 80°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Electronic Roll Axis

Real-time screen correction is unavailable during recording, but can be applied to the footage recorded on the drone.

Video Transmission System

O4

Live View Quality

1080p@30/50/60/100fps

Operating Frequency

2.400-2.4835 GHz
5.170-5.250 GHz*
5.725-5.850 GHz*

^{* 5.170-5.250 GHz and 5.725-5.850 GHz can be used only in countries and regions where permitted by local laws and regulations.}

Transmitter Power (EIRP)

2.4 GHz:
＜33 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
＜33 dBm (FCC)
＜30 dBm (SRRC)
< 14 dBm (CE)

Communication Bandwidth

Max 60 MHz

Max Transmission Distance (unobstructed, free of interference)

FCC: 13 km (subject to the aircraft's max flight distance)
CE: 10 km
SRRC: 10 km
MIC: 10 km

^{Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the goggles screen during your flight.}

Max Transmission Distance (unobstructed, with interference)

Strong Interference: Urban landscape, approx.
1.5-4 km

Medium Interference: Suburban landscape, approx.
4-10 km

Low Interference: Suburb/seaside, approx.
10-13 km

^{Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km

Low Interference and Obstructed by Trees: approx.
0.5-3 km

^{Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.}

Max Download Speed

Wi-Fi: 30 MB/s*

^{* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.}

Lowest Latency

With DJI Goggles 3:

1080p/100fps Video Transmission Quality: 24 ms

1080p/60fps Video Transmission Quality: 40 ms‌

Max Video Bitrate

60Mbps

Antennas

4 antennas, 2T4R

Protocol

802.11a/b/g/n/ac

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:
<20 dBm (FCC／CE／SRRC／MIC)

5.8 GHz:
<20 dBm (FCC／SRRC)
< 14 dBm (CE)

Protocol

Bluetooth 5.0

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

<10 dBm

Capacity

2150 mAh

Weight

Approx. 145 g

Standard Voltage

14.76 V

Max Charging Voltage

17 V

Battery Type

Li-ion

Energy

31.7 Wh@0.5C

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

With Charging Hub (60W max charging power):
From 0 to 100%: approx. 45 min‌
From 10 to 90%: approx. 30 min‌‌

Directly Charging the Drone (30 W max charging power):‌
From 0 to 100%: approx. 88 min‌
From 10 to 90%: approx. 60 min‌‌‌‌

Input

5-20 V, max 3 A

Output (power accumulation)

Max 65 W

Output (charging)

Max 17 V

Output (USB)

5 V, 2 A

Charging Type

Three batteries charged in sequence.

Compatibility

DJI Avata 2 Intelligent Flight Battery

Max Operating Time

Approx. 10 hours

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

0° to 50° C (32° to 122° F)

Charging Time

2 hours

Charging Type

5 V, 2 A

Battery Capacity

2600 mAh

Weight

Approx. 240 g

Dimensions

165×119×62 mm (L×W×H)

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

2.400 GHz:
＜26 dBm (FCC)
＜20 dBm (CE/SRRC/MIC)
