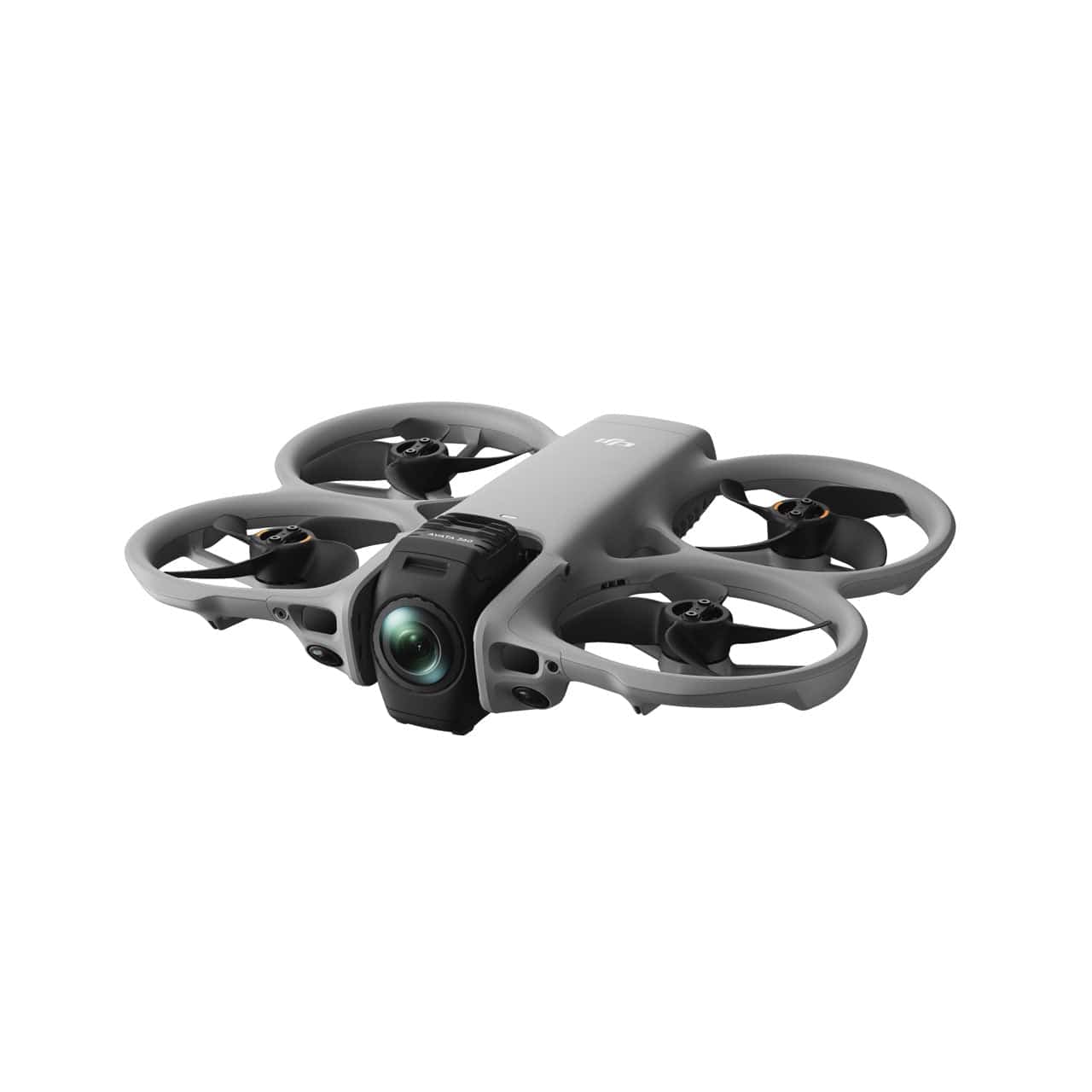

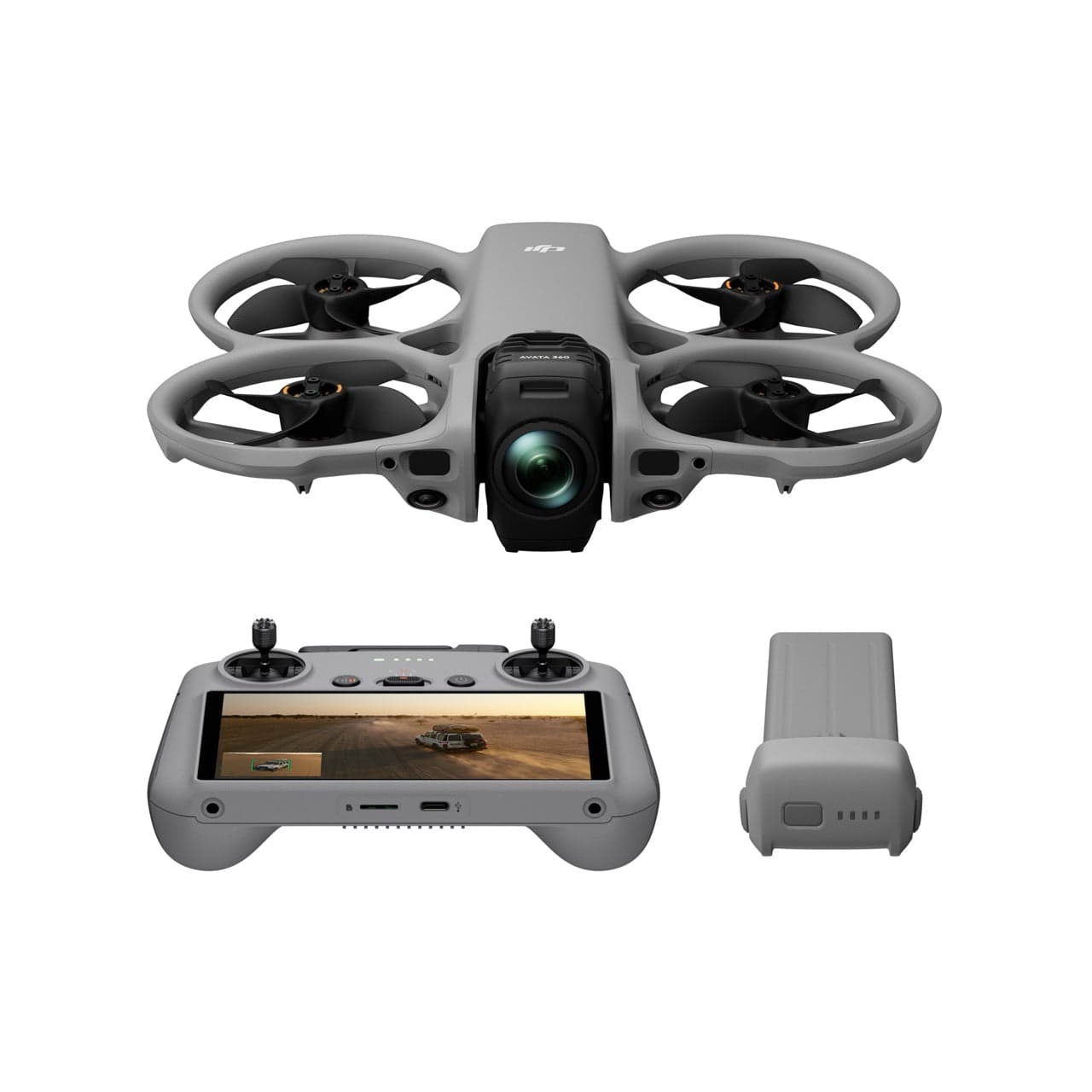

DJI Avata 360 Drone

Takeoff Weight

Approx. 455 g

246×199×55.5 mm (L×W×H)

Max Ascent Speed

• 2 m/s (Cine mode)
• 6 m/s (Normal mode)
• 10 m/s (Sport mode)

• 1.5 m/s (Cine mode)
• 6 m/s (Normal mode)
• 10 m/s (Sport mode)

At sea level, in windless conditions:

• 6 m/s (Cine mode)
• 16 m/s* (Normal mode)
• 18 m/s (Sport mode)

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft ascending vertically to a height of 1.5 meters above the ground. Actual experience may vary depending on the environment, usage, and firmware version.

* Up to 12 m/s in Normal mode by default, adjustable to 16 m/s in settings.

Max Takeoff Altitude

4500 m

Measured in a windless environment when taking off from an altitude of 4500 m and ascending vertically by 500 m, using Sport mode, and from 100% battery level until 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

Approx. 23 mins

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 21.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Approx. 22 mins

Measured when hovering in a windless environment at sea level, and the camera in photo mode, until a forced landing due to  battery depletion. Data is for reference only. Actual experience may vary depending on the environment, usage, and firmware version.

Max Flight Distance

13.5 km

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 39.6 kph, Obstacle Avoidance Action set to Brake, and the camera in Photo mode, until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

Max Wind Speed Resistance

10.7 m/s (Level 5)

Max Pitch Angle

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

Hovering Accuracy Range

Vertical:

• ±0.1 m (with vision positioning)
• ±0.5 m (with satellite positioning)
• ±0.3 m/3 mins (with ETK positioning)

Horizontal:

• ±0.3 m (with vision positioning)
• ±1.5 m (with satellite positioning)
• ±0.3 m/3 mins (with ETK positioning)

Internal Storage

42 GB

C1 (EU)

Image Sensor

• Two 1/1.1-Inch Square CMOS Sensors
• Effective Pixels per Sensor: 64MP

• FOV: 200°
• Format Equivalent: 7.8 mm
• Focal Length: 2.5 mm
• Aperture: f/1.9
• Focus mode: FF
• Focus: 1.5 m to ∞

ISO Range

360° Video:

• 8K@60/50/48fps: 100-12800 (Normal/D-Log M)
• 8K@30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)
• 6K@60/50/48/30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)

360° Photo: 100-6400

Single-Lens Video: 100-12800

• Video: 1/8000-1/25 s
• Photo: 1/8000-1/30 s

Still Photography Mode

Single Shot:

In 360° mode, the resolution is 30 MP* or 120 MP**.

* For 30MP/8K 360° photos, the resolution is 7776×3888 (30 MP) in JPEG and 7680×3840 (29.49 MP) in DNG.

** For 120MP/16K 360° photos, the resolution is 15520×7760 (120 MP) in JPEG and 15360×7680 (118 MP) in DNG.</sup>

Max Image Size

360° Photo: 15520×7760

Photo Format

Video Resolution

360° Mode:

• 8K (2:1): 7680×3840@60/50/48/30/25/24fps
• 6K (2:1): 6000×3000@60/50/48/30/25/24fps

Single Lens Mode:

• 4K (4:3)*: 3840×2880@60/50/48/30/25/24fps
• 4K (16:9): 3840×2160@60/50/48/30/25/24fps
• 2.7K (4:3)*: 2688×2016@120/100/60/50/48/30/25/24fps
• 2.7K (16:9): 2688×1512@120/100/60/50/48/30/25/24fps

* Only supported when using DJI Goggles 3/N3 paired with DJI RC Motion 3 or DJI FPV Remote Controller 3.

Video Format

180 Mbps

Color Mode

• Normal
• D-Log M

Single Lens Mode:

• With RC 2/RC-N2/RC-N3: Supports only RockSteady
• With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller
• 3: Supports a switch between RockSteady and HorizonBalancing

Camera FOV

Single Lens Mode:

• With RC 2/RC-N2/RC-N3: Natural Wide
• With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller
• 3: Standard (Dewarp)/Wide/Natural Wide

Supported File System

exFAT

Stabilization

• Single-Axis Mechanical Gimbal (tilt)
• 360° Virtual Gimbal

Controllable Range

Single-Axis Mechanical Gimbal:

• Tilt (With RC 2/RC-N2/RC-N3): -30° to 60°
• Tilt (With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3): -60° to 60°

360° Virtual Gimbal:

• Tilt: -180° to 180°
• Roll: -180° to 180°

Max Control Speed

Single-Axis Mechanical Gimbal: Tilt: 100°/s

360° Virtual Gimbal:

• Tilt: 100°/s
• Roll: 100°/s

Single-Axis Mechanical Gimbal: ±0.01°

Sensing Type

Omnidirectional vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-20 m

FOV: Horizontal 90°, Vertical 90°

Backward

Measurement Range: 0.5-18 m

Lateral

Measurement Range: 0.5-18 m

Upward

Measurement Range: 0.5-18 m

• 3D ToF Effective Measurement Height: 10 m
• Precise Hovering Range: 0.3-10 m
• 3D ToF FOV: Horizontal 60°, Vertical 60°
• Measurement Range: 0.5-20 m
• FOV: Horizontal 90°, Vertical 90°

Operating Environment

Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20% (such as concrete pavement)

Adequate lighting (lux > 1, normal indoor lighting conditions)

Video Transmission System

O4+

Live View Quality

Single Lens Mode: 1080p@100*/60/50/48/30/25/24fps

360° Mode: 1080p@60/50/48/30/25/24fps

* In Single Lens Mode, 1080p/100fps is supported only when the aircraft is used with Goggles 3/N3 and RC Motion 3.

Operating Frequency

• 2.400-2.4835 GHz
• 5.170-5.250 GHz*
• 5.725-5.850 GHz

* 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)

2.400-2.4835 GHz:

• < 33 dBm (FCC)
• < 20 dBm (CE/SRRC/MIC)

5.170-5.250 GHz: < 23 dBm (CE)

5.725-5.850 GHz:

• < 33 dBm (FCC)
• < 30 dBm (SRRC)
• < 14 dBm (CE)

Communication Bandwidth

Max Transmission Distance (unobstructed, free of interference)

• FCC: 20 km
• CE: 10 km
• SRRC: 10 km
• MIC: 10 km

Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders on the camera view during your flight.

• Strong Interference: Urban landscape, approx. 1.5-5 km
• Medium Interference: Suburban landscape, approx. 5-12 km
• Low Interference: Suburb/seaside, approx. 12-20 km

Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference)

• Low Interference and Obstructed by Buildings: Approx. 0-0.7 km
• Low Interference and Obstructed by Trees: Approx. 0.7-4.5 km

Data tested under FCC standard in environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Lowest Latency

With RC 2/RC-N2/RC-N3:

1080p/60fps Video Transmission Quality: Approx. 130 ms*

* Actual experience may vary depending on the environment, usage, and firmware version.

Max Video Bitrate

Max Download Speed

O4+: 10 MB/s

Wi-Fi 6: 100 MB/s*

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz, and when internal storage or a high-speed microSD card is used. Download speeds may vary depending on the actual conditions.

4 antennas, 2T4R

Capacity

≥ 2700 mAh

Weight

Approx. 149 g

Nominal Voltage

14.32 V

Max Charging Voltage

17.2 V

Battery Type

Li-ion

Energy

≥ 38.67 Wh

Discharge Rate

7C (typical)

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

With Charging Hub (100W max charging power):

• One Battery, From 0 to 100%: Approx. 47 min
• One Battery, From 10 to 90%: Approx. 31 min
• Three Batteries, From 0 to 100%: Approx. 100 min
• Three Batteries, From 10 to 90%: Approx. 70 min

Directly Charging the Drone (65W max charging power):‌

• One Battery, From 0 to 100%: Approx. 73 min
• One Battery, From 10 to 90%: Approx. 51 min

Data tested under laboratory conditions at 25° C (77° F) and can be used for reference only. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.

Input

5-20 V, max 5 A

Output (power accumulation)

Max 60 W

Output (charging)

Max 17.2 V

Output (USB)

30 W

Charging Type

Supports Charging up to Three batteries Simultaneously

Parallel charging requires the DJI 65W Portable Charger or DJI 100W USB-C Power Adapter. With an input of 65 W or higher, the hub supports parallel charging. Otherwise, it charges sequentially, prioritizing the highest battery level.

Compatibility

DJI Avata 360 Intelligent Flight Battery

Lexar SILVER PLUS 64GB A2 V30 microSDXC
Lexar SILVER PLUS 128GB A2 V30 microSDXC
Lexar SILVER PLUS 256GB A2 V30 microSDXC
Lexar SILVER PLUS 512GB A2 V30 microSDXC
Lexar SILVER PLUS 1TB A2 V30 microSDXC
Kingston CANVAS GO! Plus 64GB A2 V30 microSDXC
Kingston CANVAS GO! Plus 128GB A2 V30 microSDXC
Kingston CANVAS GO! Plus 256GB A2 V30 microSDXC
Kingston CANVAS GO! Plus 512GB A2 V30 microSDXC

Using Lexar SILVER PLUS series microSD cards may deliver a better photography experience.

Protocol

Operating Frequency

• 2.400-2.4835 GHz
• 5.725-5.850 GHz

Transmitter Power (EIRP)

2.4000-2.4835 GHz: < 20 dBm (FCC/CE/SRRC/MIC)

5.725-5.850 GHz:

• < 26 dBm (FCC/SRRC)
• <14 dBm (CE)

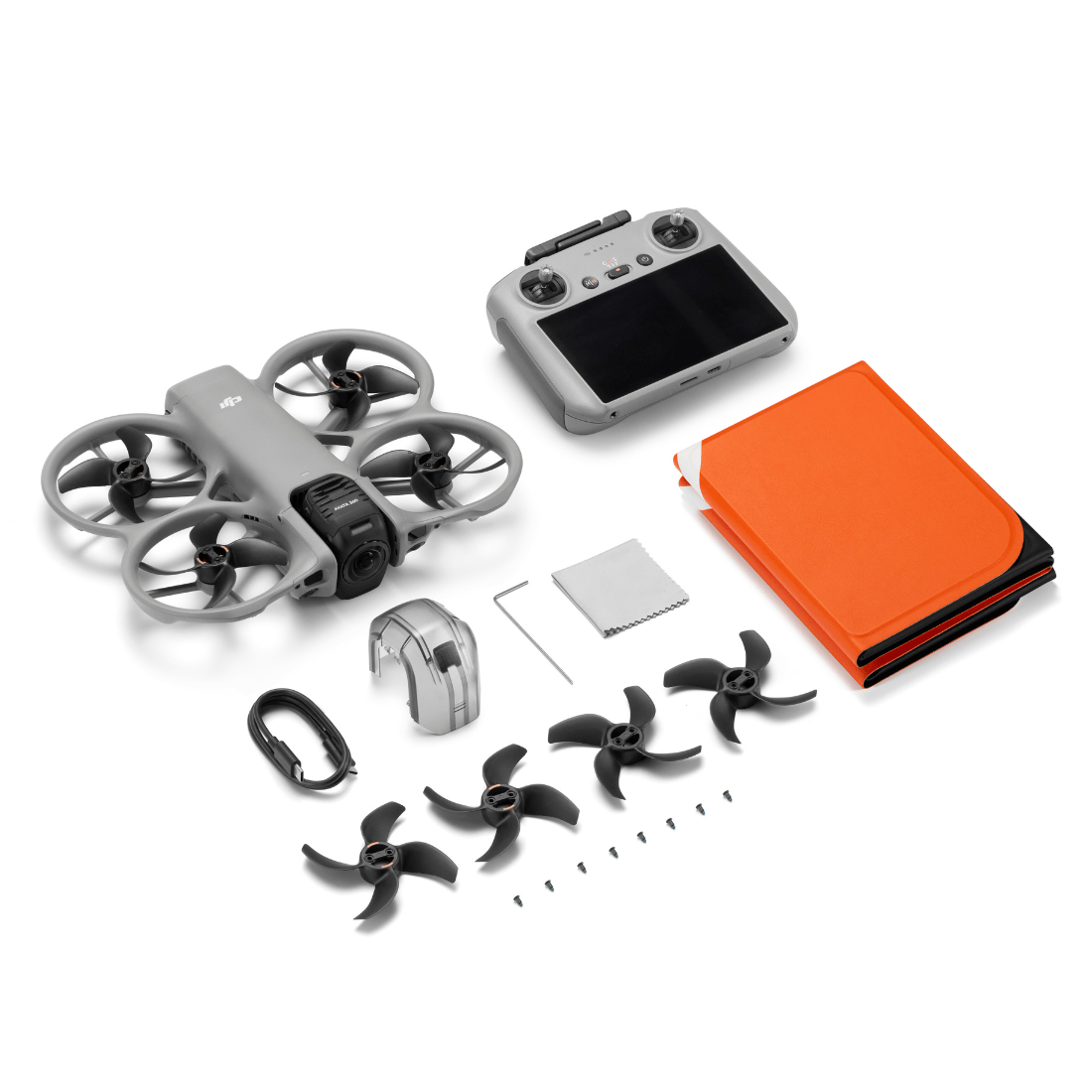

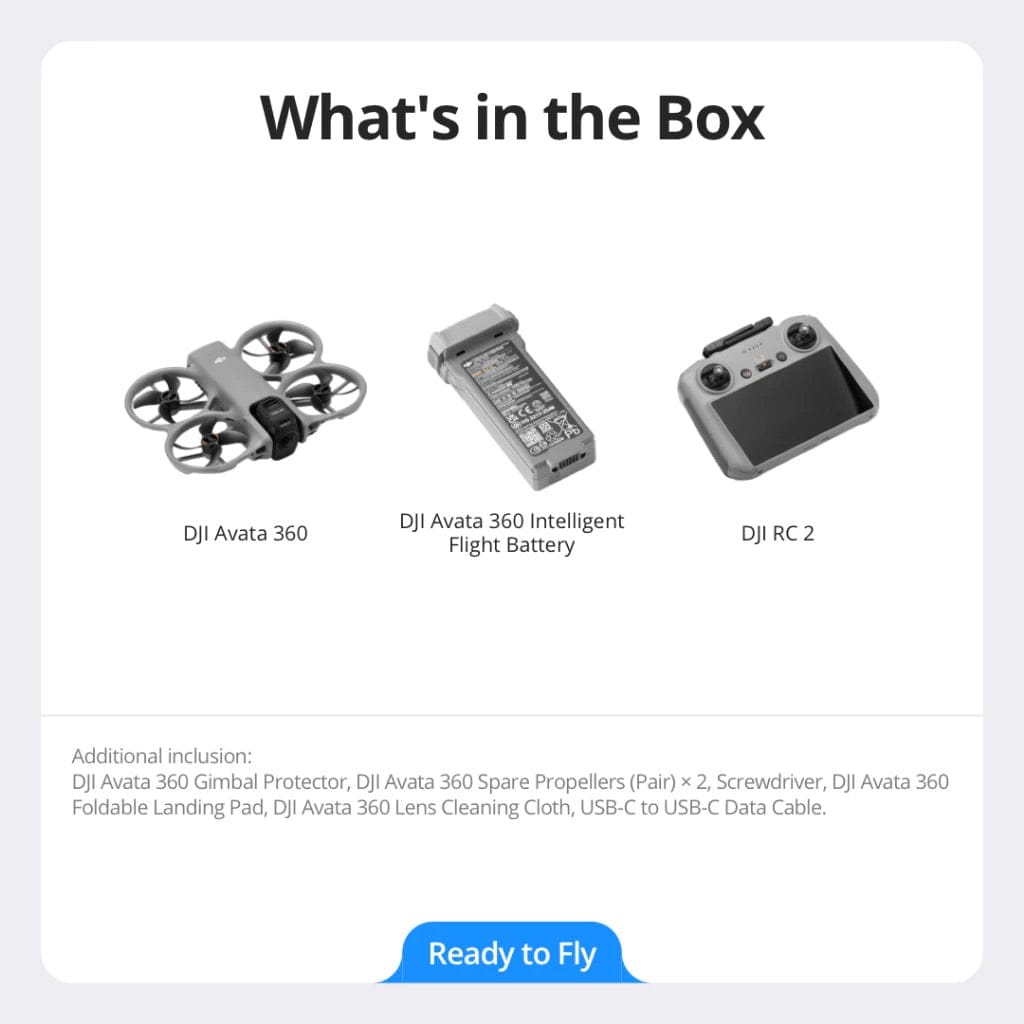

• DJI Avata 360 x 1
• DJI Avata 360 Intelligent Flight Battery x 1
• DJI RC 2 x 1
• DJI Avata 360 Gimbal Protector x 1
• DJI Avata 360 Spare Propellers (Pair) x 2
• Screwdriver x 1
• DJI Avata 360 x 1
• Foldable Landing Pad x 1
• DJI Avata 360 Lens Cleaning Cloth x 1
• USB-C to USB-C Data Cable. x 1

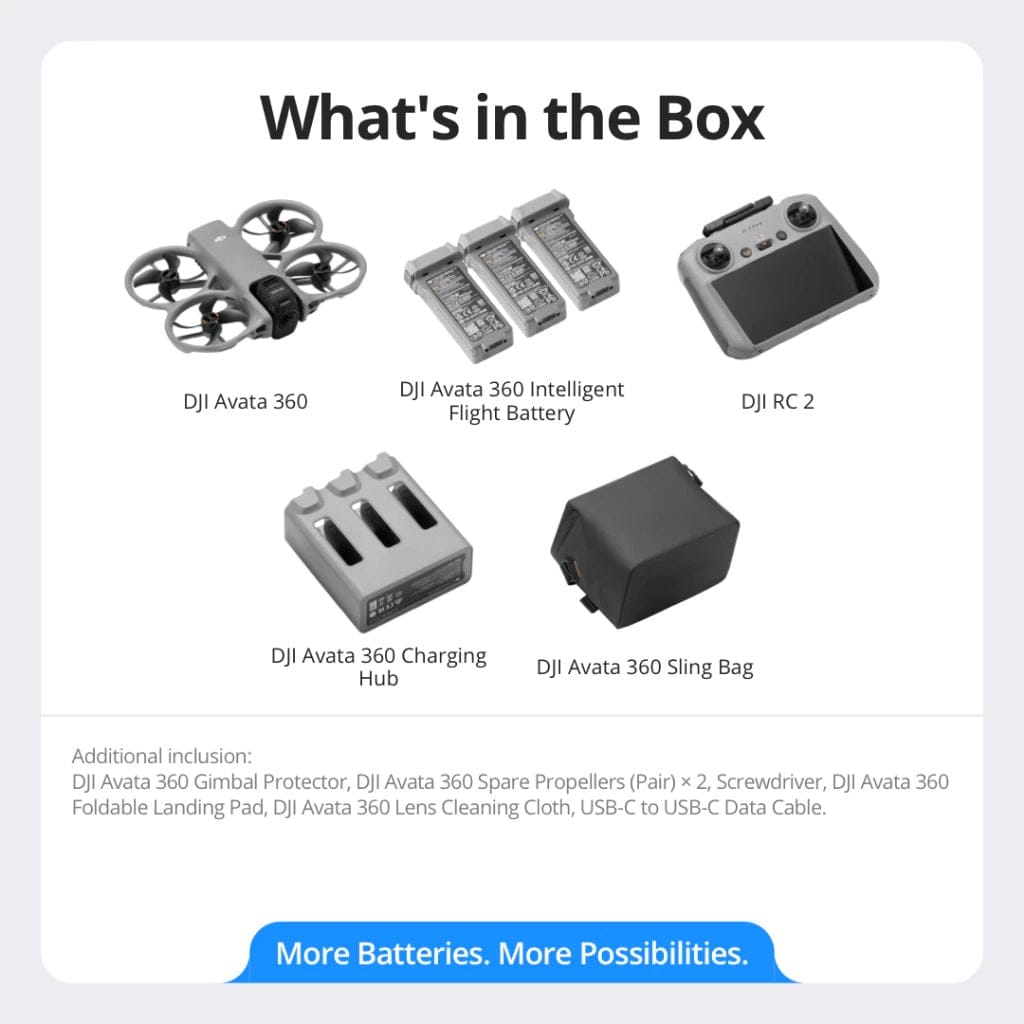

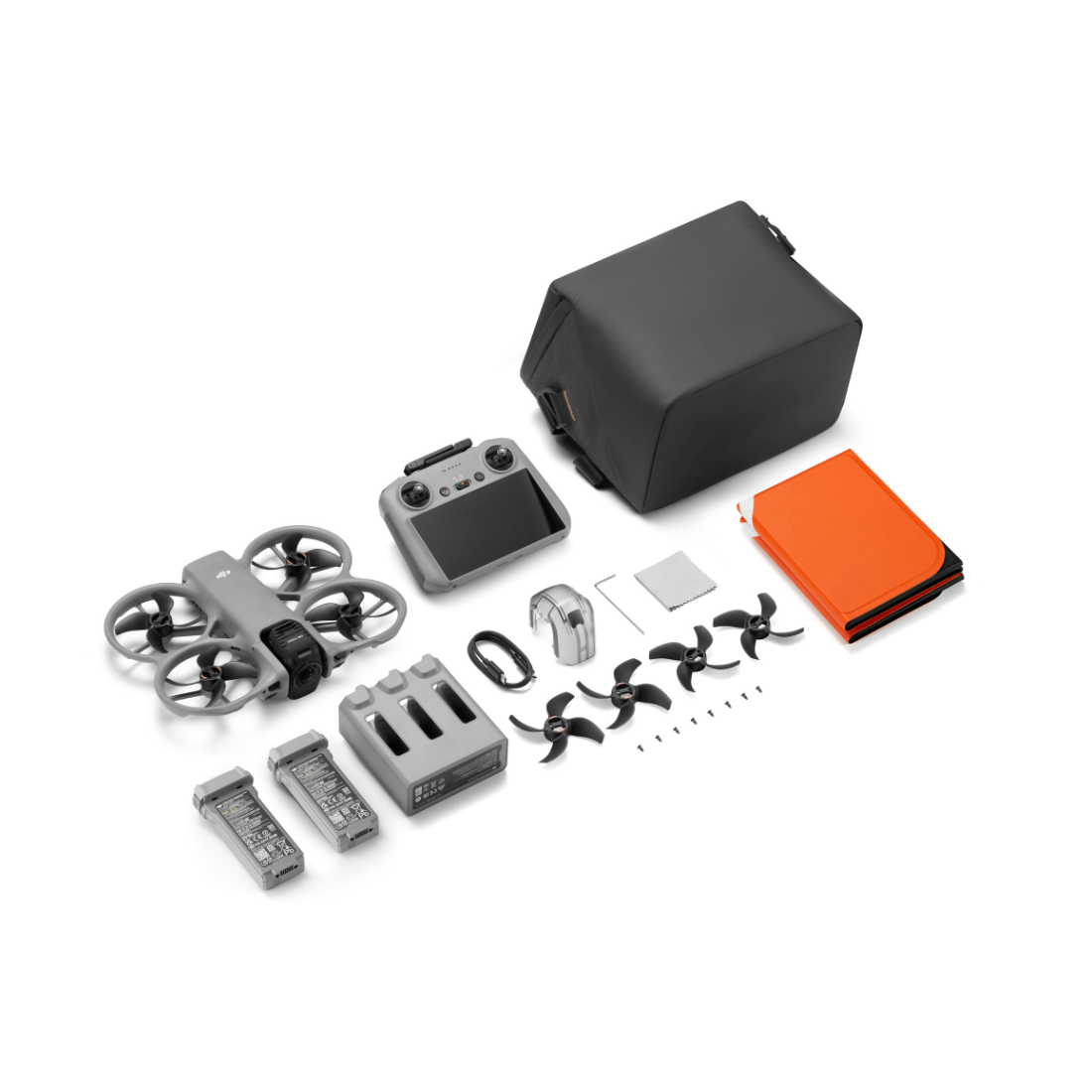

• DJI Avata 360 x 1
• DJI Avata 360 Intelligent Flight Battery x 3
• DJI RC 2 x 1
• DJI Avata 360 Charging Hub x 1
• DJI Avata 360 Sling Bag x 1
• DJI Avata 360 Gimbal Protector x 1
• DJI Avata 360 Spare Propellers (Pair) x 2
• Screwdriver x 1
• DJI Avata 360 x 1
• Foldable Landing Pad x 1
• DJI Avata 360 Lens Cleaning Cloth x 1
• USB-C to USB-C Data Cable. x 1

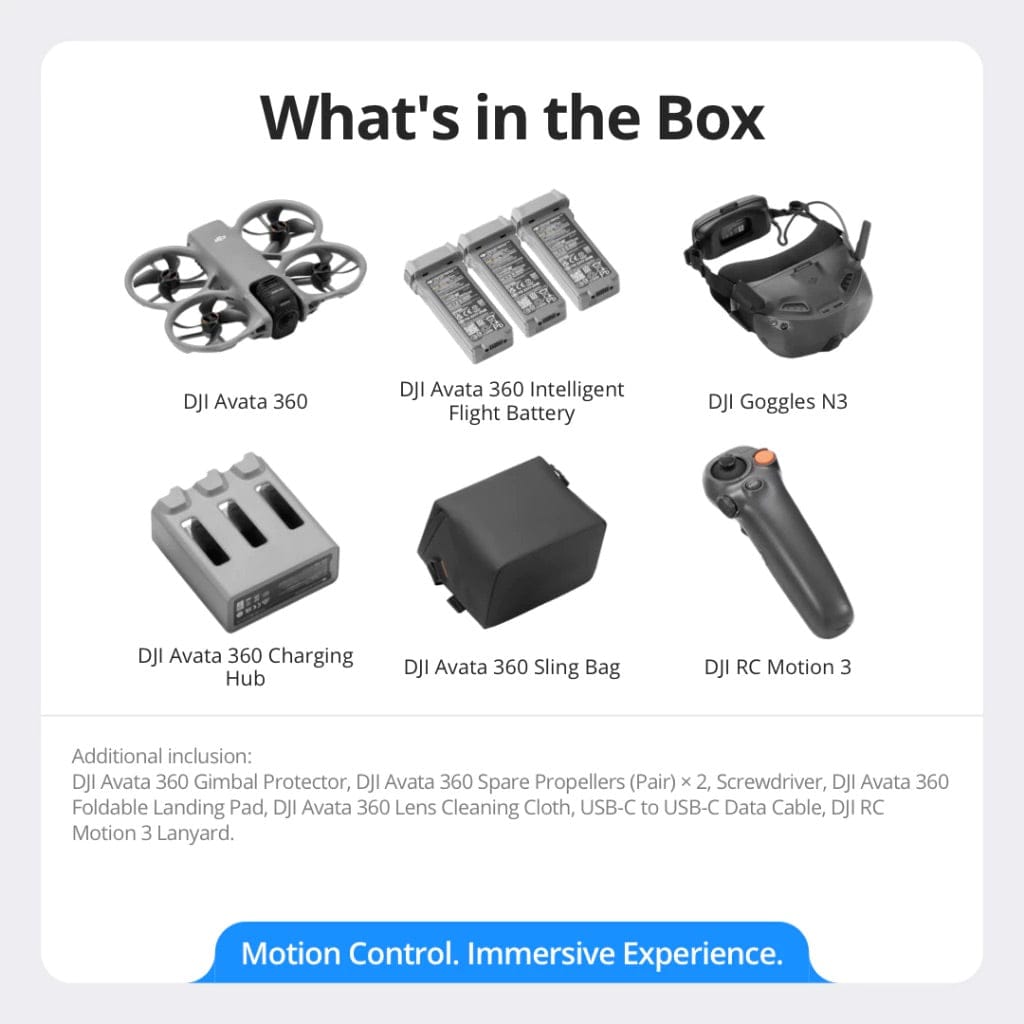

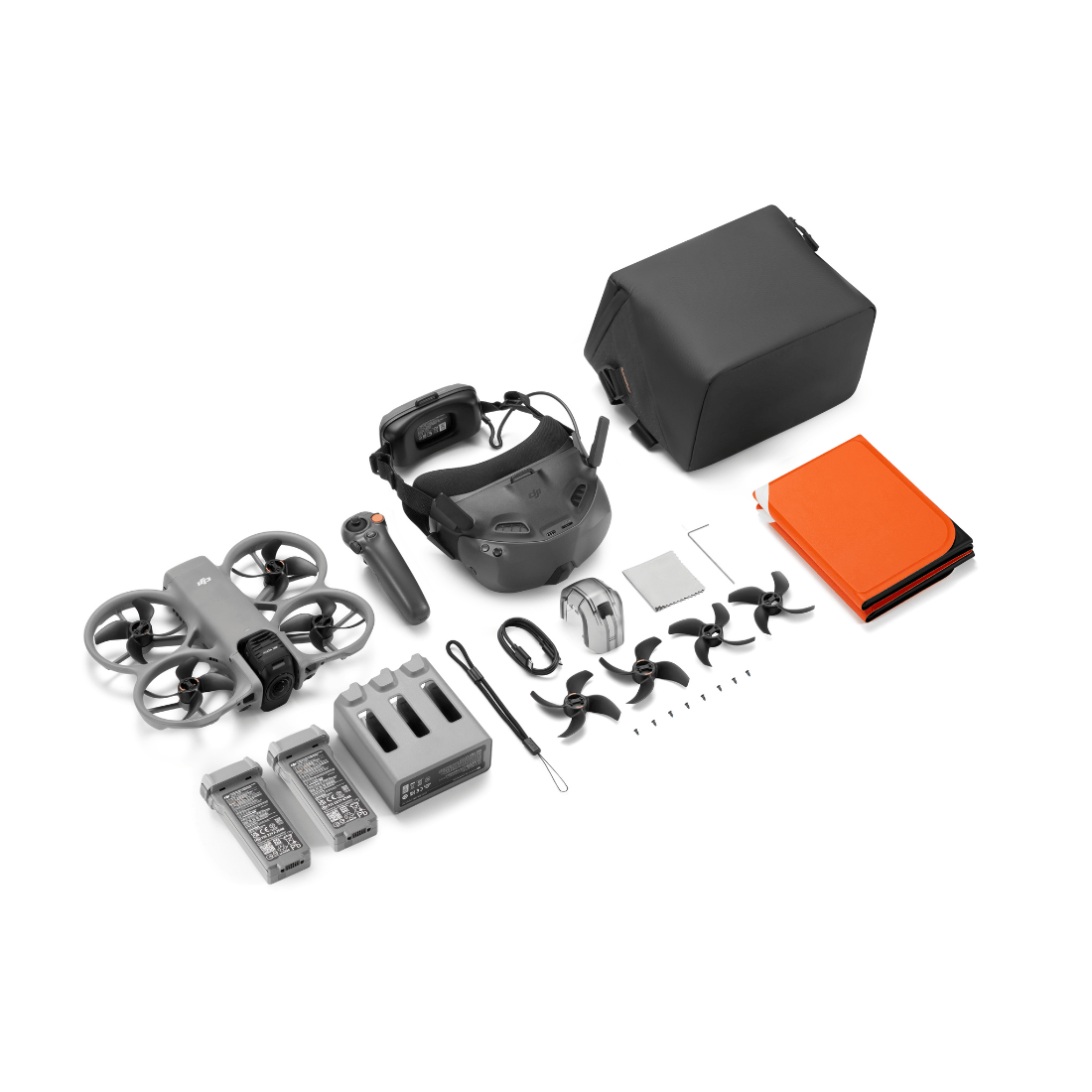

• DJI Avata 360 x 1
• DJI Avata 360 Intelligent Flight Battery x 3
• DJI Goggles N3 x 1
• DJI Avata 360 Charging Hub x 1
• DJI Avata 360 Sling Bag x 1
• DJI RC Motion 3 x 1
• DJI Avata 360 Gimbal Protector x 1
• DJI Avata 360 Spare Propellers (Pair) x 2
• Screwdriver x 1
• DJI Avata 360 Foldable Landing Pad x 1
• DJI Avata 360 Lens Cleaning Cloth x 1
• USB-C to USB-C Data Cable x 1
• DJI RC Motion 3 Lanyard. x 1
