DJI Lito 1 Drone

Takeoff Weight

Standard Takeoff Weight: Approx. 249 g

Max Takeoff Weight: Approx. 340 g

The standard takeoff weight includes the Intelligent Flight Battery. The max takeoff weight includes the propeller guards, the Intelligent Flight Battery, and a microSD card.

Actual product weight may vary due to differences in batch materials and other factors. With the Intelligent Flight Battery Plus, the aircraft will weigh more than 249 g. Always check and strictly abide by local laws and regulations before flying.

The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

Folded (without propellers): 149×94×62 mm (L×W×H)

Unfolded (without propellers): 183×251×79 mm (L×W×H)

7 m/s (Sport mode)

5 m/s (Normal mode)

3 m/s (Cine mode)

7 m/s (Sport mode)

5 m/s (Normal mode)

3 m/s (Cine mode)

18 m/s (Sport mode, using DJI Lito 1 Intelligent Flight Battery)

12 m/s (Normal mode)

12 m/s* (tracking status)

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft ascending vertically to a height of 1.5 meters above the ground. Actual experience may vary depending on the environment, usage, and firmware version.

* This value represents the forward speed of the aircraft in the tracking status. The maximum tracking speed in other directions is 8 m/s.

4500 m (using DJI Lito 1 Intelligent Flight Battery)

3500 m (using DJI Lito Series Intelligent Flight Battery Plus*)

In a windless environment, a fully charged aircraft using the Intelligent Flight Battery can take off from an altitude of 4500 m, ascend vertically by 120 m, and fly in Sport mode until the battery level drops to 20%. In the same environment, a fully charged aircraft using the Intelligent Flight Battery Plus can take off from an altitude of 3500 m, ascend vertically by 120 m, and fly in Sport mode until the battery level drops to 20%. Data is for reference only. Always pay attention to reminders on the camera view during your flight.

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

36 minutes (using DJI Lito 1 Intelligent Flight Battery)

52 minutes (using DJI Lito Series Intelligent Flight Battery Plus*)

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 21.6 kph, Obstacle Avoidance Action set to Brake, and the camera set to record at 1080p/24fps (but no active video recording), until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

Typical Flight Time

23 minutes (using DJI Lito 1 Intelligent Flight Battery)

37 minutes (using DJI Lito Series Intelligent Flight Battery Plus*)

Measured at sea level in a breezy environment, with the aircraft taking off with a fully charged battery, Obstacle Avoidance Action set to Brake, and the camera set to record at 4K/60fps. After takeoff, the aircraft ascends to 120 m and flies forward 1 km at 12 m/s before recording begins (about 15 minutes of recording with the Intelligent Flight Battery, and about 20 minutes with the Intelligent Flight Battery Plus). During recording, the aircraft adjusts gimbal movements and its flight position at speeds of up to 10 m/s over a total distance of approximately 2 km, while hovering for the remaining time. The aircraft hovers until a RTH reminder appears, then initiates auto RTH and completes a safe landing. Data is for reference only. Always pay attention to reminders in the app during your flight.

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

20 km (using DJI Lito 1 Intelligent Flight Battery)

32 km (using DJI Lito Series Intelligent Flight Battery Plus*)

Measured in a controlled wind tunnel environment under conditions equivalent to windless operation and sea-level altitude, with the aircraft flying forward at a constant speed of 43.2 kph, Obstacle Avoidance Action set to Brake, and the camera set to record at 1080p/24fps (but no active video recording), until a forced landing due to battery depletion. Actual experience may vary depending on the environment, usage, and firmware version.

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

10.7 m/s

35°

0° to 40° C (32° to 104° F)

GPS + Galileo + BeiDou

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with satellite positioning)

Horizontal:
±0.3 m (with vision positioning)
±1.5 m (with satellite positioning)

None

C0 (EU)

1/2-inch CMOS, 48MP Effective Pixels

FOV: 79°
Format Equivalent: 26.2 mm
Aperture: f/1.8
Focus: 4 m to ∞

Video
Normal: 100-12800
Slow Motion: 100-12800

100-12800 (12 MP)
100-3200 (48 MP)

12MP Photo: 1/8000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s

8000×6000

Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames at 2/3 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s

JPEG/DNG (RAW)

H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

H.264
FHD: 1920×1080@24/25/30/48/50/60fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps

* Recording frame rates. The corresponding video plays as a slow-motion video. Slow-motion videos and 4K video recordings only support H.265 encoding.

MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

130 Mbps

When shooting 4K/100fps video with DJI Lito 1, the video encoding bitrate can reach up to 130Mbps, corresponding to a video stream frame rate of 100fps. However, since slow-motion video files are encapsulated at 25fps, the video length displayed on the player is four times the recording duration, and the bitrate of the parsed encapsulated file is approximately one-fourth of the original encoding bitrate

Supported File System

Normal:
8-bit 4:2:0 (H.264)
10-bit 4:2:0 (H.265)

Wide

Video
4K: 1-3x
FHD: 1-4x
2.7K Vertical Shooting: 1-3x

12 MP: 1-3x
48 MP: 1-3x

3-axis mechanical gimbal (tilt, roll, pan)

Tilt: -126° to 67°
Roll: -49° to 49°
Pan: -30° to 30°

'-90° to 40°

100°/s

±0.01°

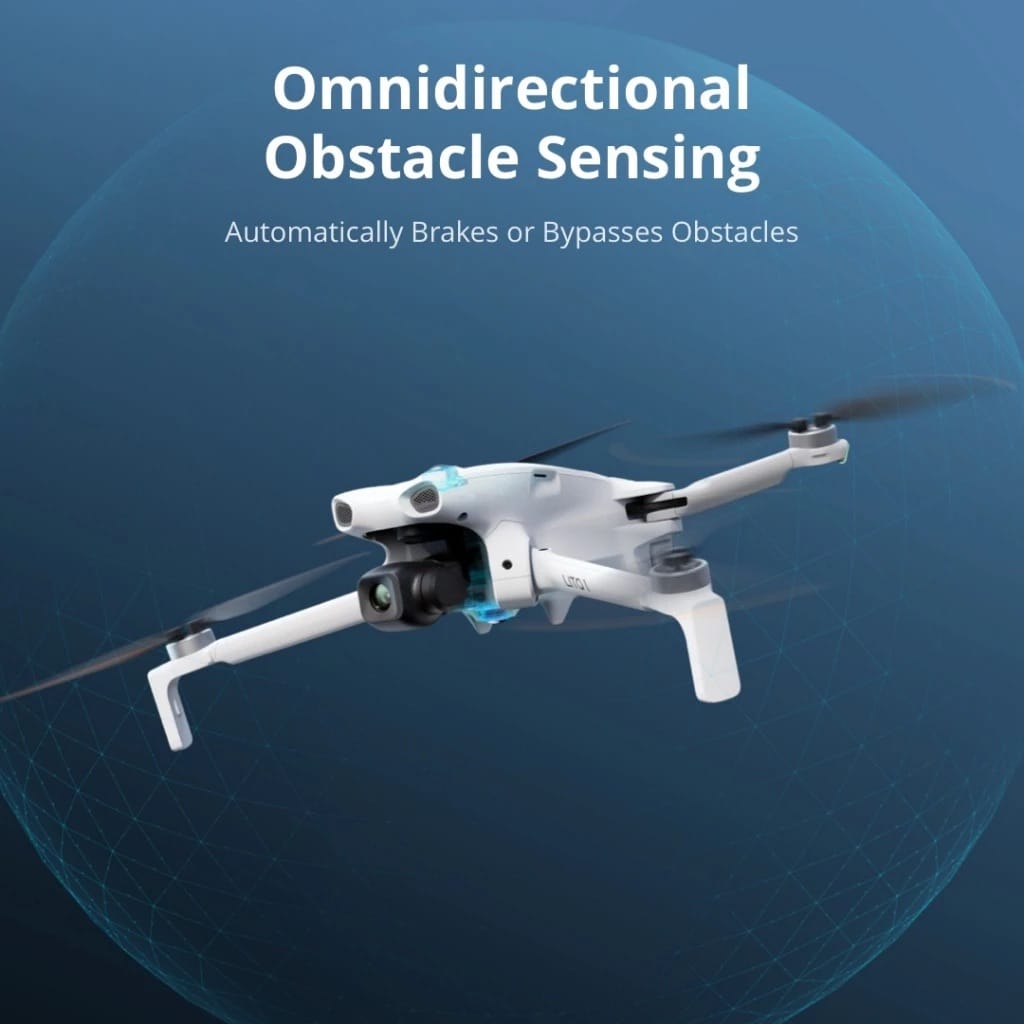

Omnidirectional monocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Detection Range: 0.5-20 m
Effective Sensing Speed: Flight Speed ≤ 12 m/s

Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 8 m/s

Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 8 m/s

Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 5 m/s

Detection Range: 0.5-15 m
Effective Sensing Speed: Flight Speed ≤ 5 m/s

Measurement Range: 0.3-8 m (reflectivity > 10%)

Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 5, normal indoor lighting conditions)

Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g., walls, trees, people), and adequate lighting (lux > 5, normal indoor lighting conditions)

O4

With Remote Controller: Up to 1080p/60fps

2.4000-2.4835 GHz
5.1700-5.2500 GHz
5.7250-5.8500 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

2.4 GHz:
< 30 dBm (IC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
< 30 dBm (IC)
< 30 dBm (SRRC)
< 14 dBm (CE)

IC: 15 km
CE: 8 km
SRRC: 8 km
MIC: 8 km

Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the drone's max flight distance. Always pay attention to RTH reminders on the camera view during your flight.

Strong Interference (urban landscape): Approx. 1-1.5 km
Medium Interference (suburban landscape): Approx. 2.5-7 km
Low Interference (suburb/seaside): Approx. 7-10 km

Measured under IC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Low Interference and Obstructed by Buildings: Approx. 0-0.5 km
Low Interference and Obstructed by Trees: Approx. 0.5-1.5 km

Measured under IC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

O4:
10 MB/s (with DJI RC-N3 Remote Controller)
10 MB/s (with DJI RC 2)

Wi-Fi 6:
Up to 50 MB/s*

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

With Remote Controller: Approx. 120 ms

Depending on the actual environment and mobile device.

2 antennas (1T2R)

802.11 a/b/g/n/ac/ax

2.4000-2.4835 GHz
5.7250-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

2.4 GHz: < 20 dBm (IC/CE/SRRC/MIC)

5.8 GHz:
< 23 dBm (IC/SRRC)
< 14 dBm (CE)

2.4000-2.4835 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

< 10 dBm

DJI Lito 1 Intelligent Flight Battery: 2590 mAh
DJI Lito Series Intelligent Flight Battery Plus*: 4680 mAh

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

DJI Lito 1 Intelligent Flight Battery: Approx. 79 g
DJI Lito Series Intelligent Flight Battery Plus*: Approx. 118 g

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

DJI Lito 1 Intelligent Flight Battery: 7.32 V
DJI Lito Series Intelligent Flight Battery Plus*: 7.16 V

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

DJI Lito 1 Intelligent Flight Battery: 8.6 V
DJI Lito Series Intelligent Flight Battery Plus*: 8.6 V

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

Li-ion

LiNiMnCoO2

DJI Lito 1 Intelligent Flight Battery: 18.96 Wh
DJI Lito Series Intelligent Flight Battery Plus*: 33.51 Wh

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

5° to 40° C (41° to 104° F)

DJI Lito 1 Intelligent Flight Battery:

• 1 battery can be fully charged in approx. 73 minutes by charging through the drone using the DJI 65W Portable Charger.
• 1 battery can be fully charged in approx. 45 minutes using the Charging Hub and DJI 65W Portable Charger.
• 3 batteries can be fully charged in approx. 87 minutes using the Charging Hub and DJI 65W Portable Charger.

DJI Lito Series Intelligent Flight Battery Plus*:

• 1 battery can be fully charged in approx. 102 minutes by charging through the drone using the DJI 65W Portable Charger.
• 1 battery can be fully charged in approx. 56 minutes using the Charging Hub and DJI 65W Portable Charger.
• 3 batteries can be fully charged in approx. 130 minutes using the Charging Hub and DJI 65W Portable Charger.

Charging time is measured in a test environment with a temperature of 25°C. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.
* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

5 V/9 V/12 V/15 V/20 V, up to 3.25 A

5 V/9 V/12 V/15 V/20 V, up to 3 A

DJI Lito 1 Intelligent Flight Battery: Three batteries charged in parallel*
DJI Lito Series Intelligent Flight Battery Plus**: Three batteries charged in parallel*

* Parallel charging requires batteries of the same model and a PD-compatible charger with power output of 45 W or greater. During parallel charging, the two batteries with lower charge will first be sequentially charged to a level similar to the battery with the highest charge, after which all three batteries will be fully charged simultaneously.

** The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

DJI Lito 1 Intelligent Flight Battery
DJI Lito Series Intelligent Flight Battery Plus*

* The Intelligent Flight Battery Plus is not supported by DJI Lito 1 in the EU or the UK. Always comply with local laws and regulations before flying.

Without Charging Any Mobile Device: 3.5 hours
When Charging a Mobile Device: 1.5 hours

'-10° to 40° C (14° to 104° F)

5° to 40° C (41° to 104° F)

Approx. 2 hours

5 V, 2 A

2600 mAh

Approx. 320 g

104.2×150×45.2 mm (L×W×H)

2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information.

2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE)

5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)

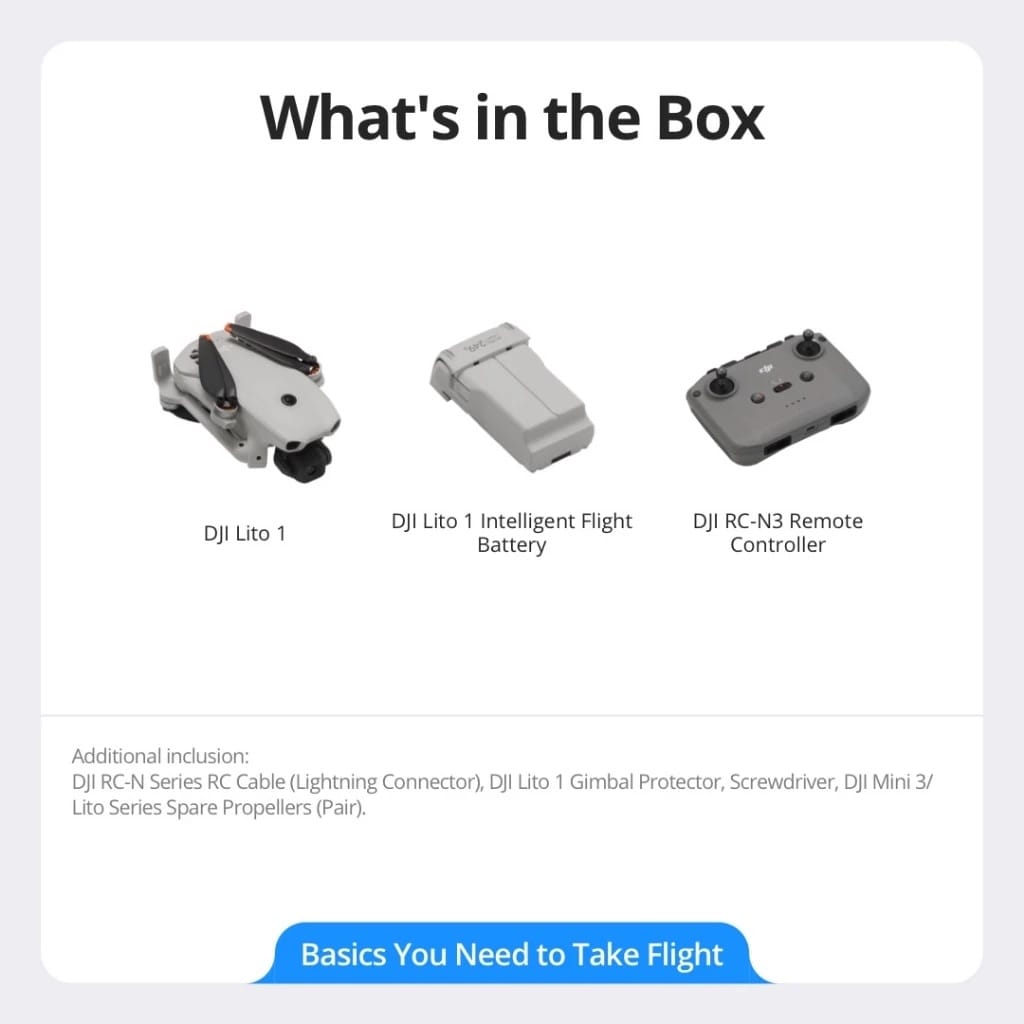

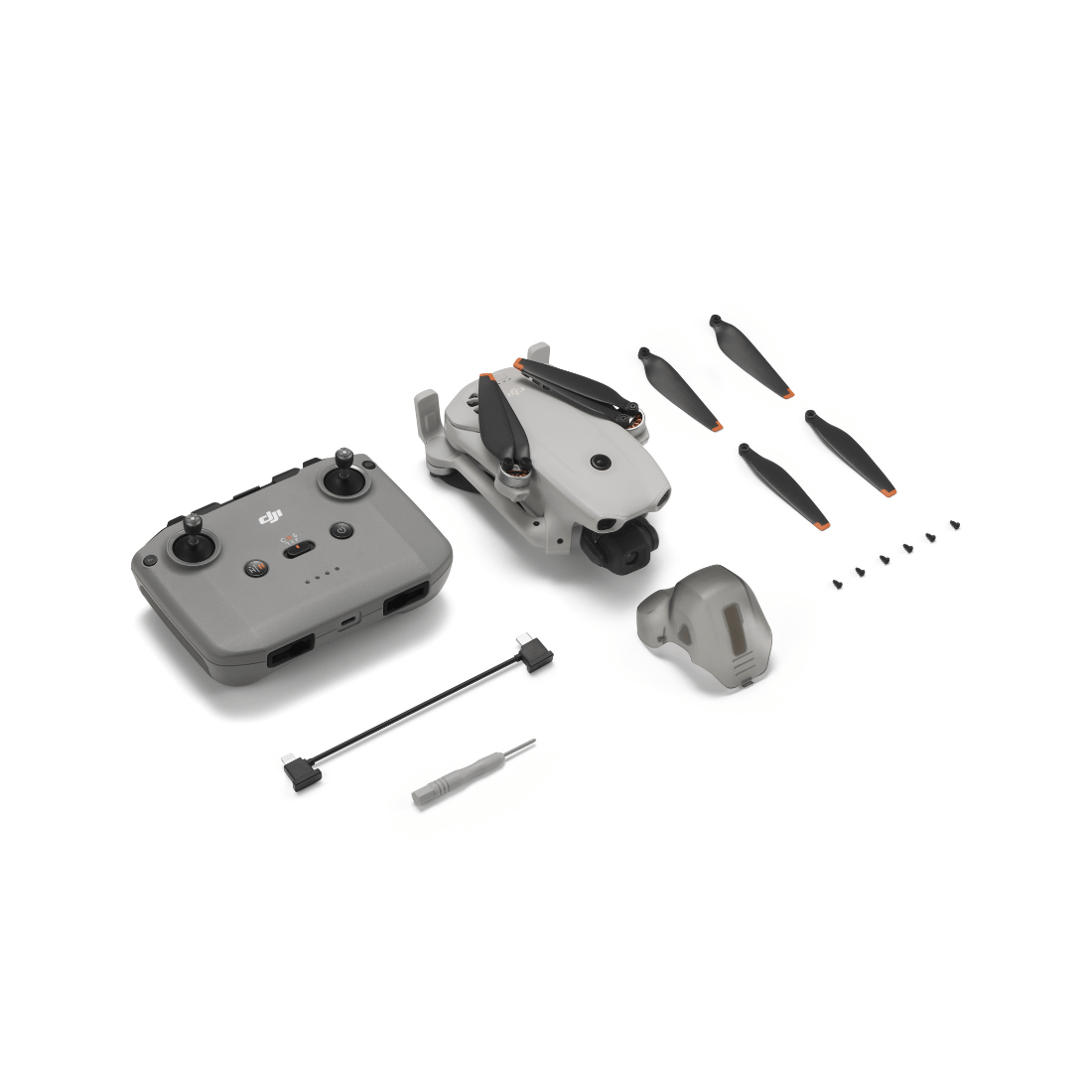

• 1x DJI Lito 1
• 1x DJI Lito 1 Intelligent Flight Battery
• 1x DJI RC-N3 Remote Controller
• 1x DJI RC-N Series RC Cable (Lightning Connector)
• 1x DJI Lito 1 Gimbal Protector
• 1x Screwdriver
• 1x DJI Mini 3/ Lito Series Spare Propellers (Pair).

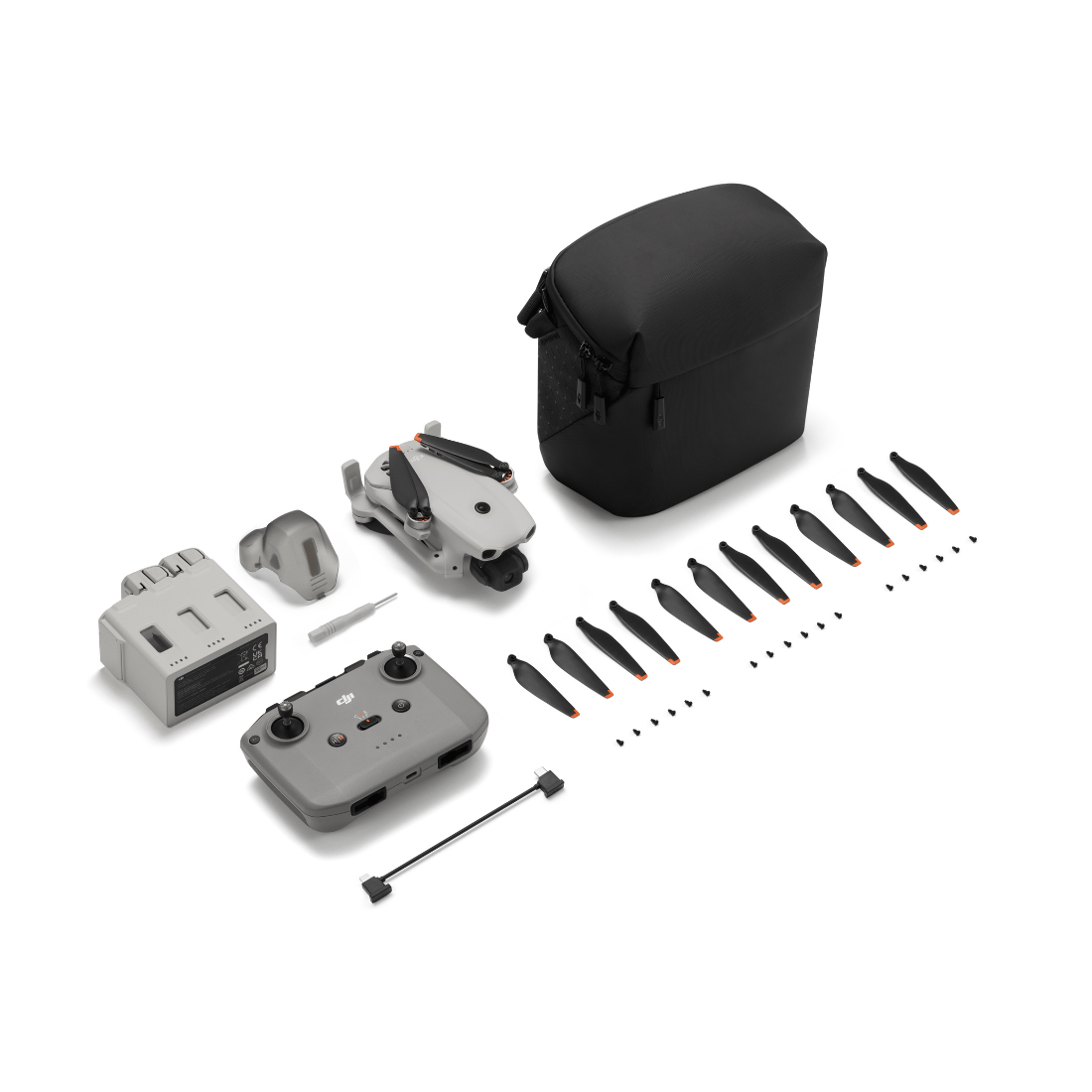

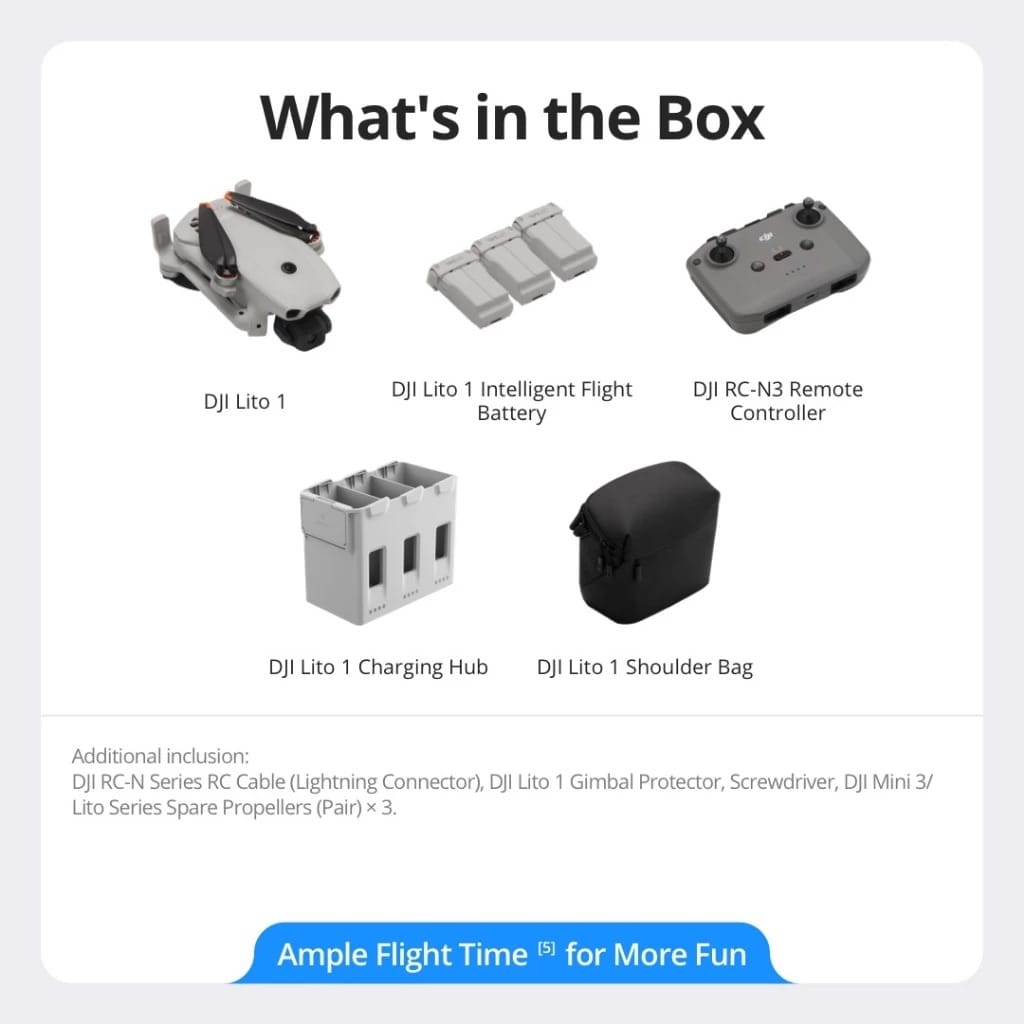

Lito 1 (Fly More Combo Dji RC N3)

• 1x DJi Lito 1
• 1x DJI Lito 1 Intelligent Flight Battery
• 1x DJI RC-N3 Remote Controller
• 1x DJI Lito 1 Charging Hub
• 1x DJI Lito 1 Shoulder Bag
• 1x DJI RC-N Series RC Cable (Lightning Connector)
• 1x DJI Lito 1 Gimbal Protector
• 1x Screwdriver
• 3x DJI Mini 3/ Lito Series Spare Propellers (Pair)
