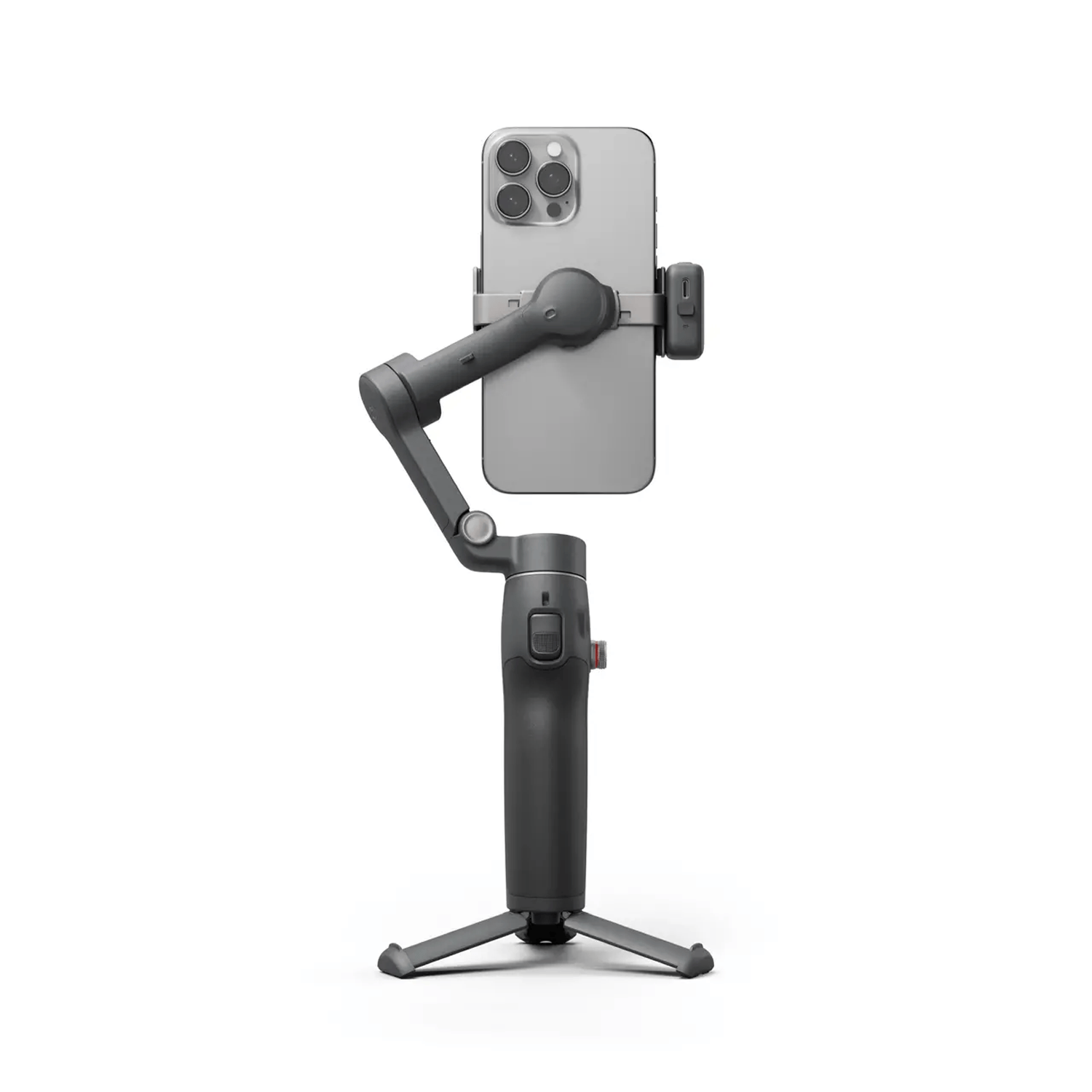

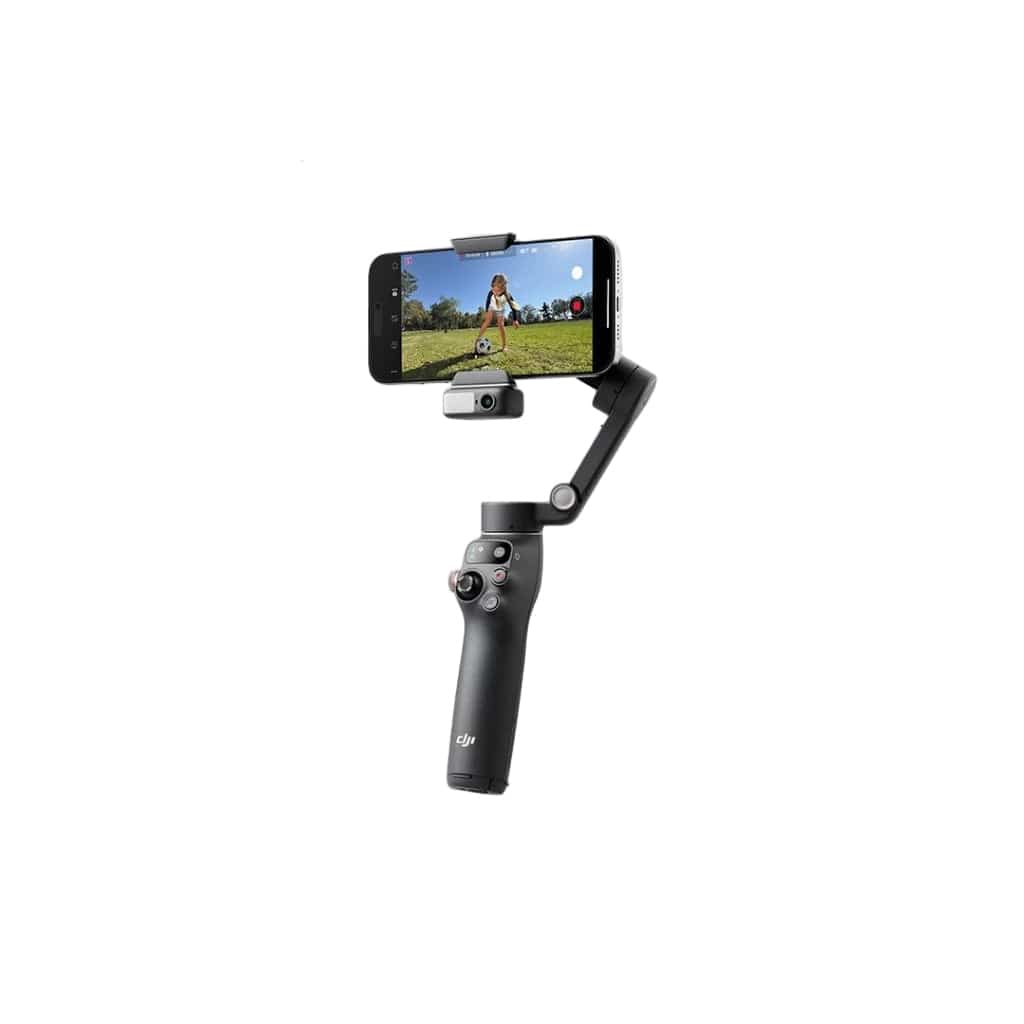

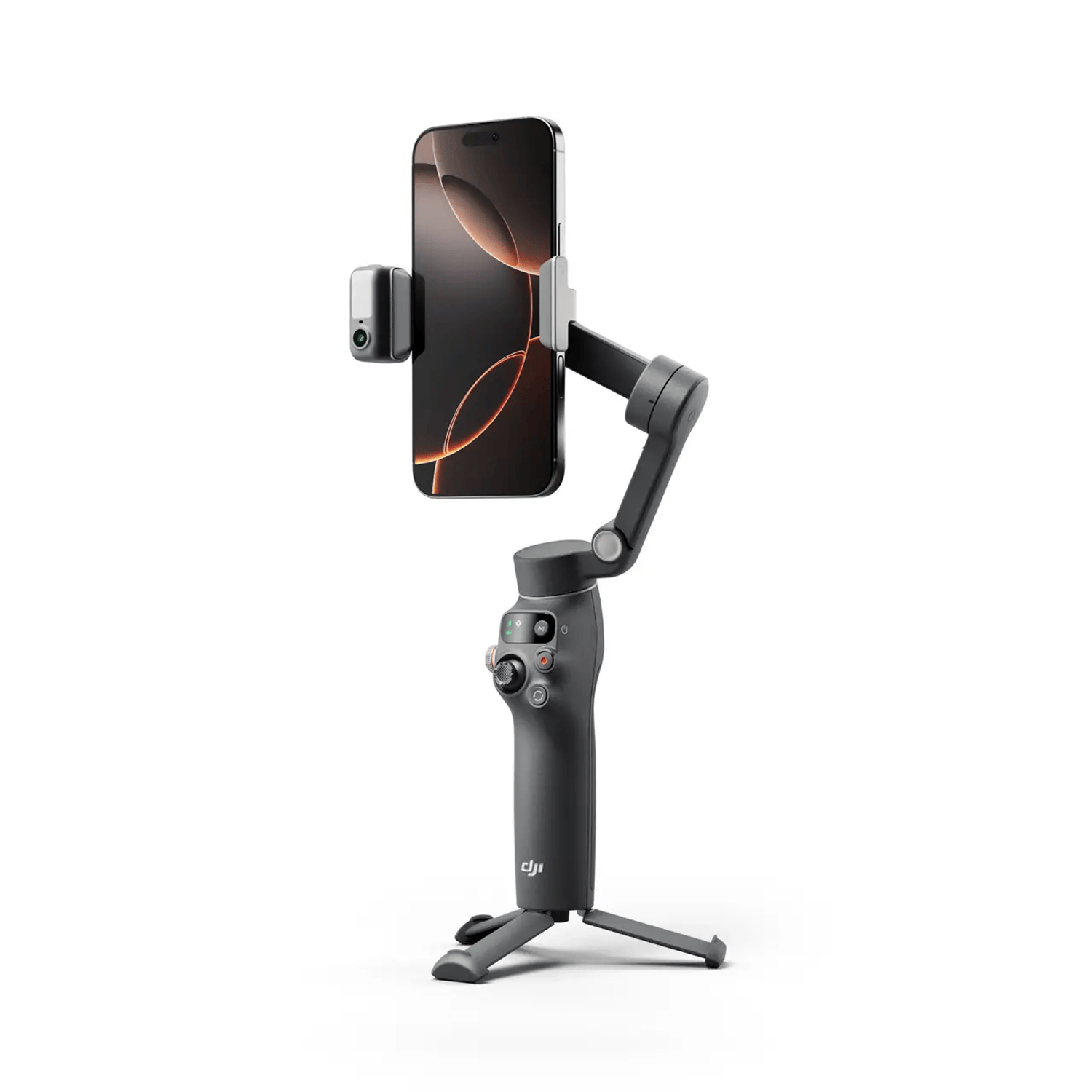

DJI Osmo Mobile 8 Flagship Intelligent Tracking Phone Gimbal

Dimensions

Unfolded: 288×107×96 mm (L×W×H)
Folded: 190×95×46 mm (L×W×H)

Weight

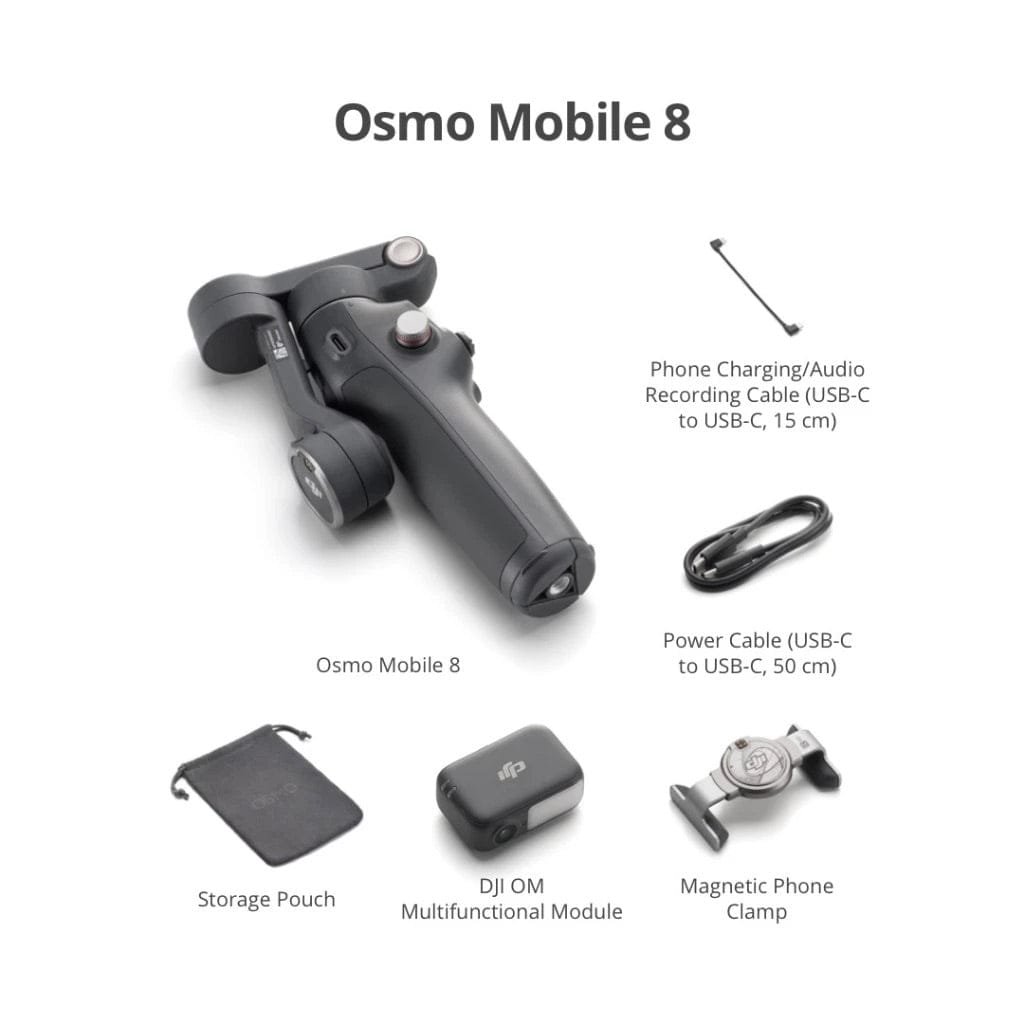

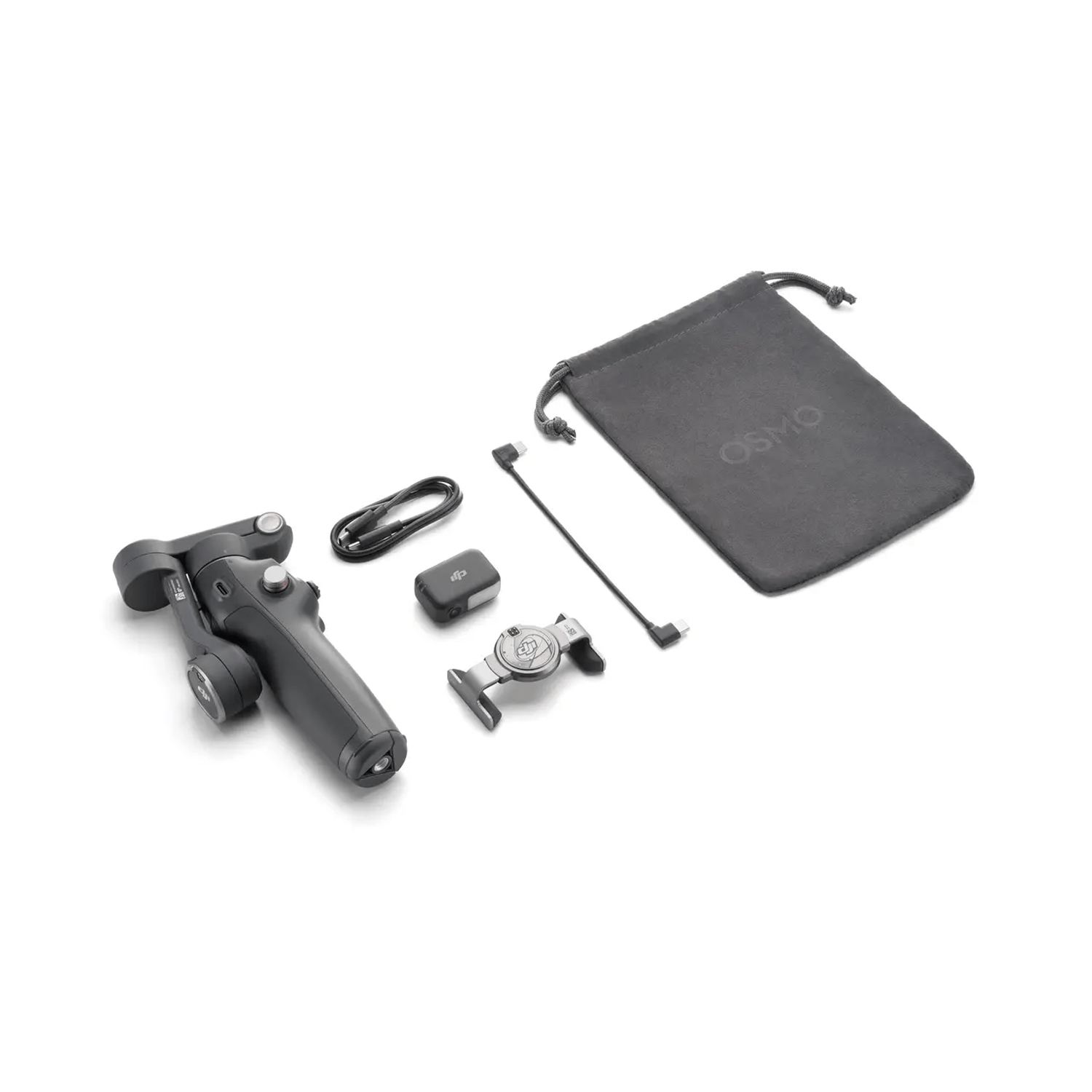

Gimbal + Built-in Tripod + Magnetic Phone Clamp + Multifunctional Module: Approx. 370 g

^{Data was collected in a controlled environment. Actual experience may vary.}

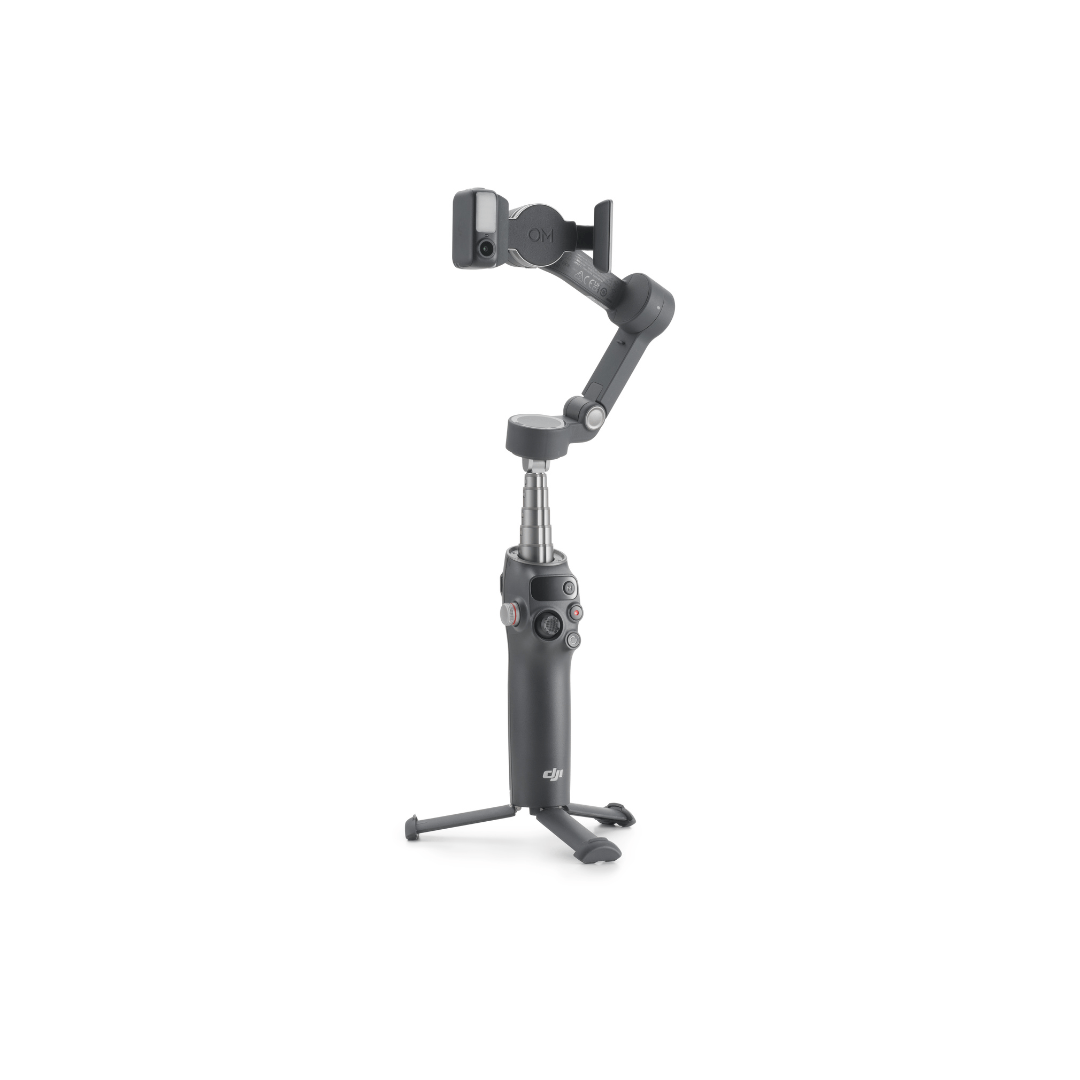

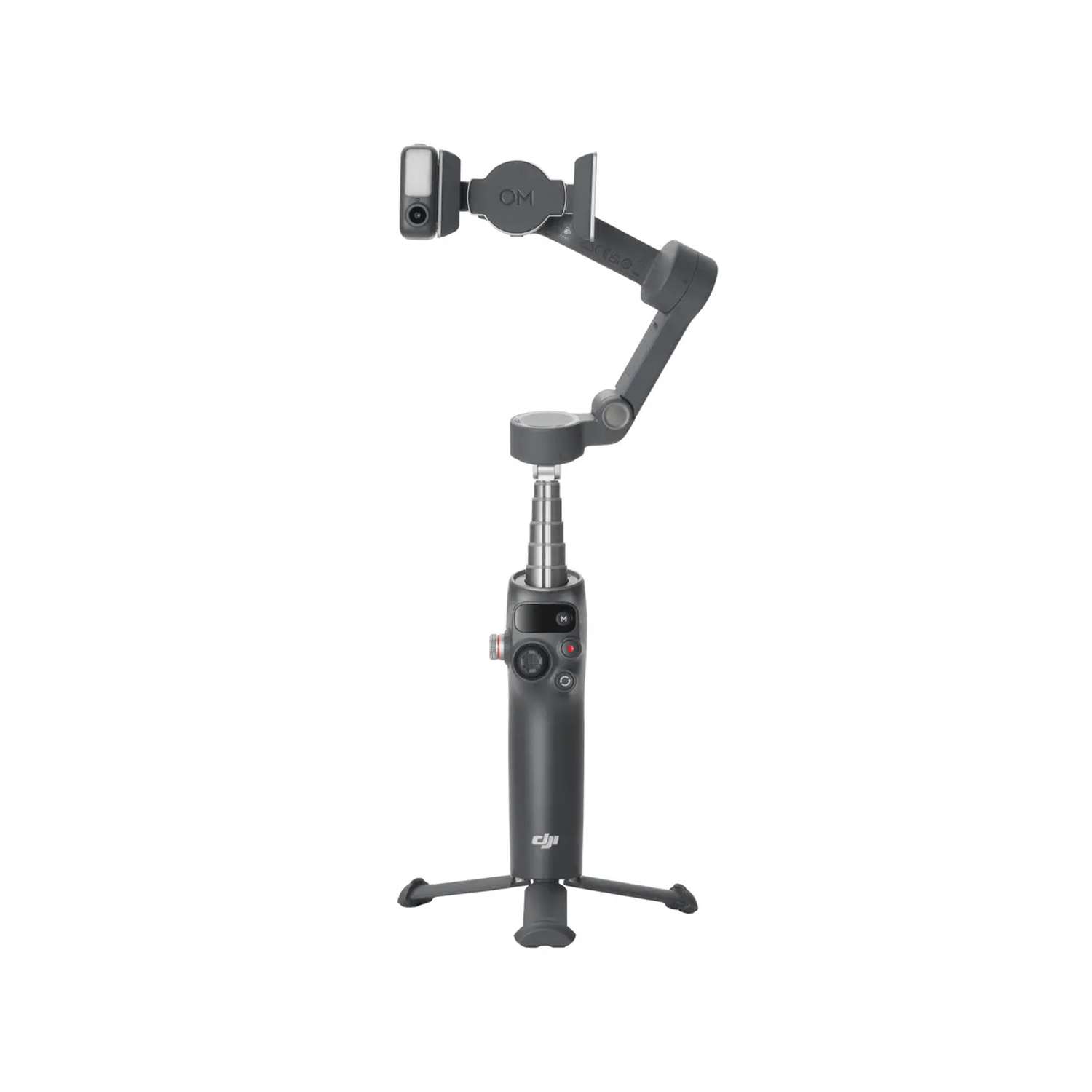

Extension Rod

Built-in Extension Rod
Max Extension Length: 215 mm

Compatible Phone Weight

170-300 g

Compatible Phone Thickness

6.9-10 mm

Compatible Phone Width

67-84 mm

Bottom Port

1/4″-20 UNC port

Type

Li-Po 1S

Capacity

3350 mAh

Energy

12.06 Wh

Charging Temprature

5° to 40° C (41° to 104° F)

Operating Temperature

0° to 40° C (32° to 104° F)

Operating Time

Approx. 10 hours
(Measured with the gimbal balanced in a level and stationary state without additional accessories)

^{With the Multifunctional Module's intelligent tracking feature enabled and the fill light off, the operating time is approximately 5 hours. When the intelligent tracking feature is on and the fill light is set to maximum brightness, the operating time is approximately 4 hours. Using the gimbal to charge your smartphone will shorten the gimbal's operating time.}

Charging Time

Approx. 2.5 hours
(Measured with a 10W USB-C charger)

Gimbal Charging Port

USB-C

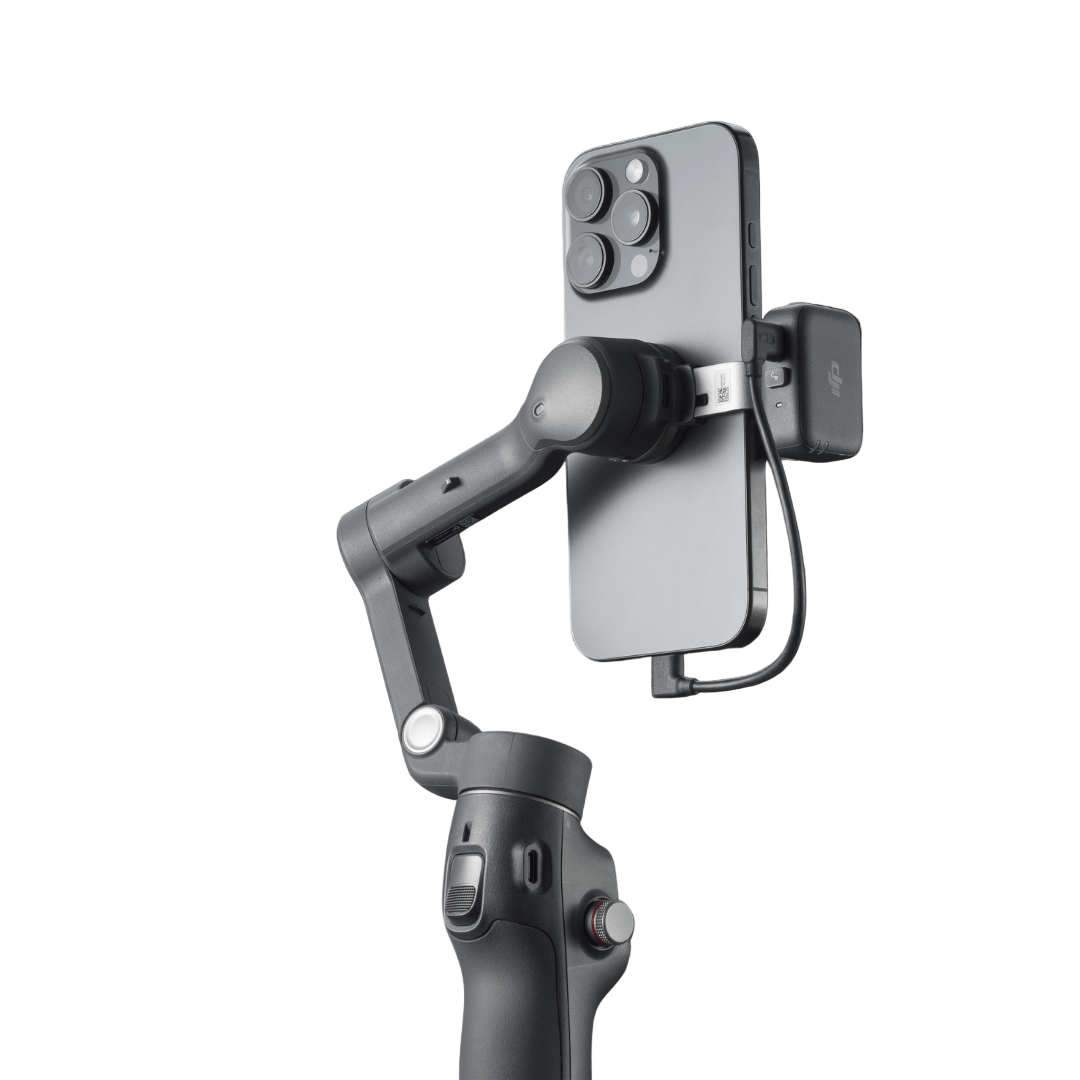

Phone Charging

Supported

Controllable Range

Pan: 360° (unlimited rotation)
Roll: -67° to 245°
Tilt: -20° to 40°

Mechanical Range

Pan: 360° (unlimited rotation)
Roll: -77° to 255°
Tilt: -224° to 100°

Max Control Speed

120°/s

GFSK

2 Mbps

GFSK Transmitter Power (EIRP)

< 16 dBm

GFSK Operating Frequency

2.4000-2.4835 GHz

Bluetooth Protocol

Bluetooth 5.3

Bluetooth Transmitter Power (EIRP)

< 16 dBm

Bluetooth Operating Frequency

2.4000-2.4835 GHz

Fill Light Illuminance

40 lux

^{This represents the maximum brightness measured at a distance of 0.6 meters from the subject and should be used for reference only.}

Fill Light Color Temperature
