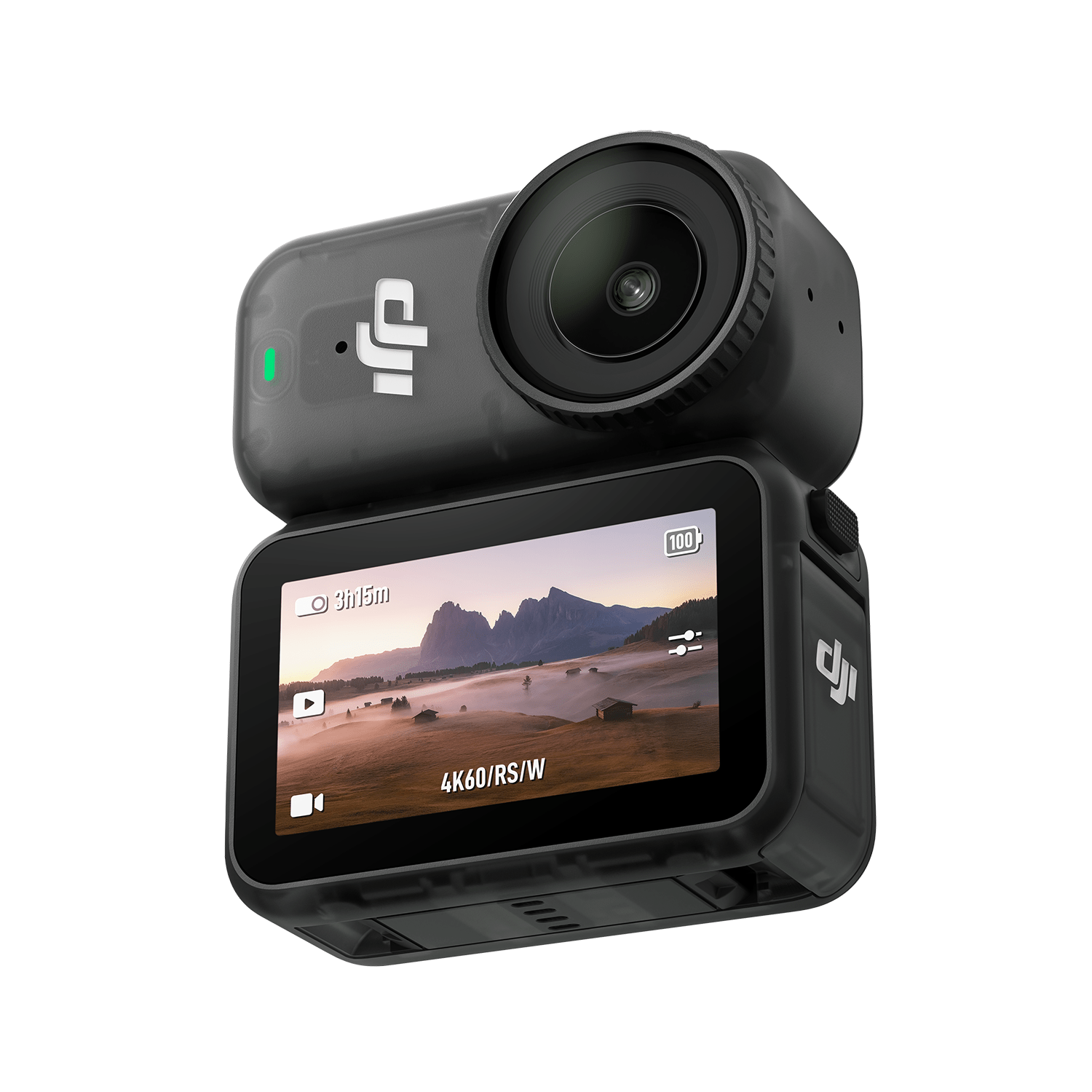

DJI Osmo Nano Wearable Camera

Sensor

1/1.3″ CMOS

Lens

FOV: 143°
Aperture: f/2.8
Focus Range: 0.35 m to ∞

ISO Range

Photo: 100-25600
Video: 100-25600

Electronic Shutter Speed

Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second

Max Photo Resolution

6880 × 5160

Still Photography Modes

Single: Approx. 35 MP
Countdown: Off/0.5/1/2/3/5/10 s
Burst: Up to 30 images/3 s

Video

4K (4:3): 3840 × 2880@24/25/30/48/50fps
4K (16:9): 3840 × 2160@24/25/30/48/50/60fps
2.7K (4:3): 2688 × 2016@24/25/30/48/50/60fps
2.7K (16:9): 2688 × 1512@24/25/30/48/50/60fps
1080p (4:3): 1920 × 1440@24/25/30/48/50/60fps
1080p (16:9): 1920 × 1080@24/25/30/48/50/60fps

Slow Motion

4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)

Hyperlapse

4K/2.7K/1080p@25/30fps: Auto/×2/×5/×10/×15/×30

Timelapse

4K/2.7K/1080p@25/30fps
Intervals: 0.5/1/2/3/4/5/6/8/10/15/20/25/30/40 s, 1/2/5/30/60 min
Duration: 5/10/20/30 min, 1/2/3/5 hours, ∞

Stabilization

EIS:
RockSteady 3.0
HorizonBalancing

^{EIS is not supported in Slow Motion and Timelapse modes. HorizonBalancing is only available when the video resolution is 1080p (16:9), 2.7K (16:9), or 4K (16:9) with a frame rate of 60fps or below.}

Pre-Rec

Pre-Recording Duration: 5/10/15/30 s, 1/2/5 min

Max Video Bitrate

120 Mbps

Supported File System

exFAT

Photo Format

JPEG/RAW

Video Format

MP4 (HEVC)

Built-in Storage Capacity

64GB Version: 48GB available storage
128GB Version: 107.6GB available storage

^{The storage capacity can be expanded by inserting a microSD card.}

Audio Recording

48 kHz 16-bit; AAC

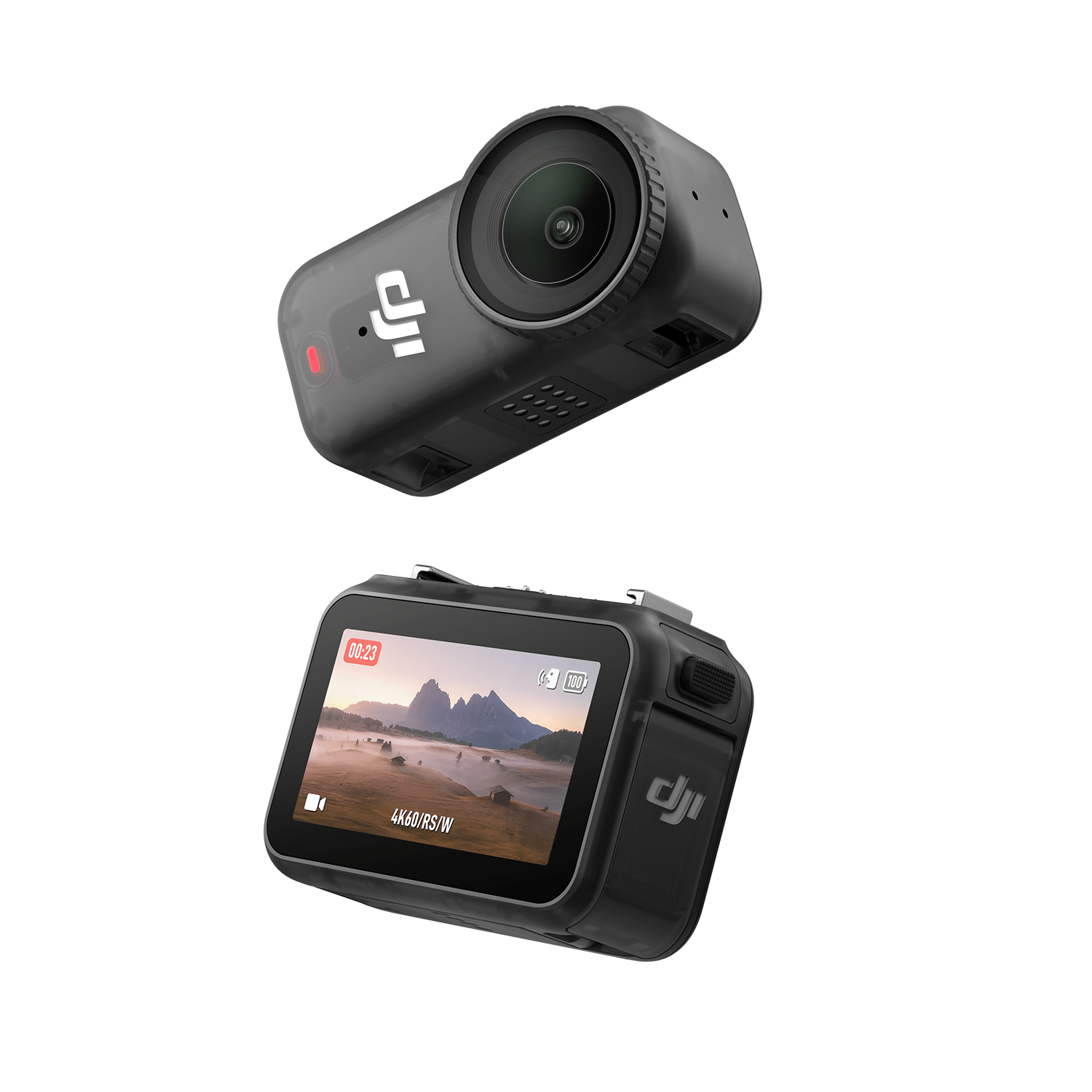

Type

Camera: Li-ion 1S
Multifunctional Vision Dock: Li-ion 1S

Capacity

Camera: 530 mAh
Multifunctional Vision Dock: 1300 mAh

Energy

Camera: 2.041 Wh
Multifunctional Vision Dock: 5.031 Wh

Voltage

Camera: 3.85 V
Multifunctional Vision Dock: 3.87 V

Operating Temperature

-20° to 45° C (-4° to 113° F)

Charging Temperature

5° to 40° C (41° to 104° F)

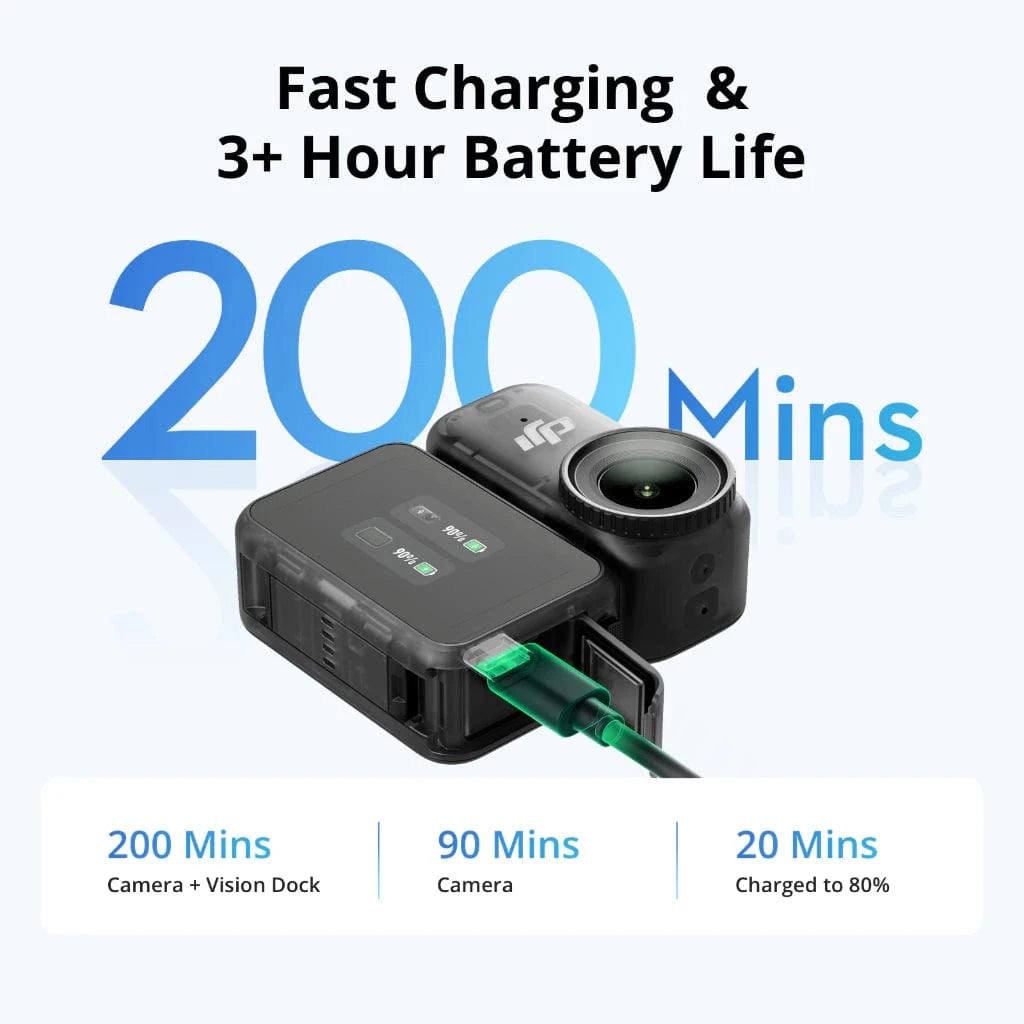

Operating Time

Camera: 90 min*
Camera + Multifunctional Vision Dock: 200 min*

^{* Tested at 25° C (77° F) room temperature while recording 1080p/24fps (16:9) video, with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off. Actual operating time may vary based on device settings, usage, and environmental factors. Data was collected in a controlled environment and should be taken as reference only.}

Endurance Mode: Continuous recording at 4K/60fps for over 50 minutes**

^{** Measured at 25° C (77° F) room temperature with RockSteady stabilization enabled, Wi-Fi disabled, and the screen turned off.}

Wi-Fi Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Wi-Fi Protocol

Wi-Fi 6.0
802.11 a/b/g/n/ac/ax

Wi-Fi Transmitter Power (EIRP)

2.4 GHz: < 23 dBm (FCC), < 20 dBm (CE/SRRC/MIC)
5.8 GHz: < 23 dBm (FCC/SRRC), < 14 dBm (CE)

Bluetooth Operating Frequency

2.400-2.4835 GHz

Bluetooth Transmitter Power (EIRP)

Camera: < 13 dBm
Multifunctional Vision Dock: < 10 dBm

Bluetooth Protocol

Camera: BLE 5.1
Multifunctional Vision Dock: BLE 5.4

Transmission Distance

Wireless transmission range between the Multifunctional Vision Dock and the camera: 10 m*

^{* Measured in an unobstructed environment free of interference.}
