Huawei Watch 5 Smartwatch

46 mm × 46.7 mm × 11.3 mm

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

140 - 210 mm

• Purple, Silver,: Approx. 58 g (excluding the strap)
• Black: Approx. 63 g (excluding the strap)

*Product size, product weight, and related specifications are theoretical values only. Actual measurements between individual products may vary. All specifications are subject to the actual product.

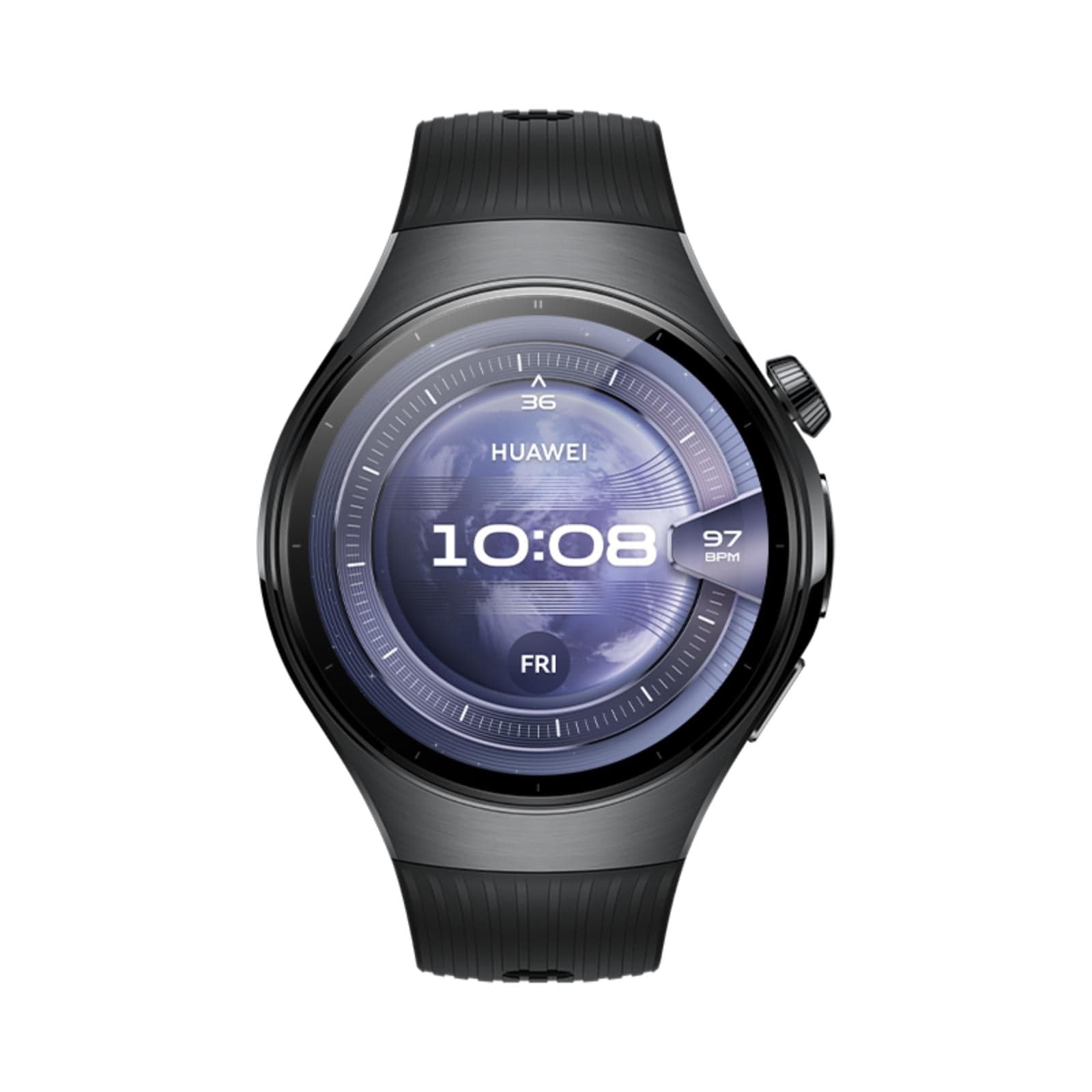

• Size: 1.5 inches LTPO 2.0 AMOLED color screen
• Resolution: 466 × 466 pixels, PPI 310
• Brightness: 3000-nit peak brightness

Material

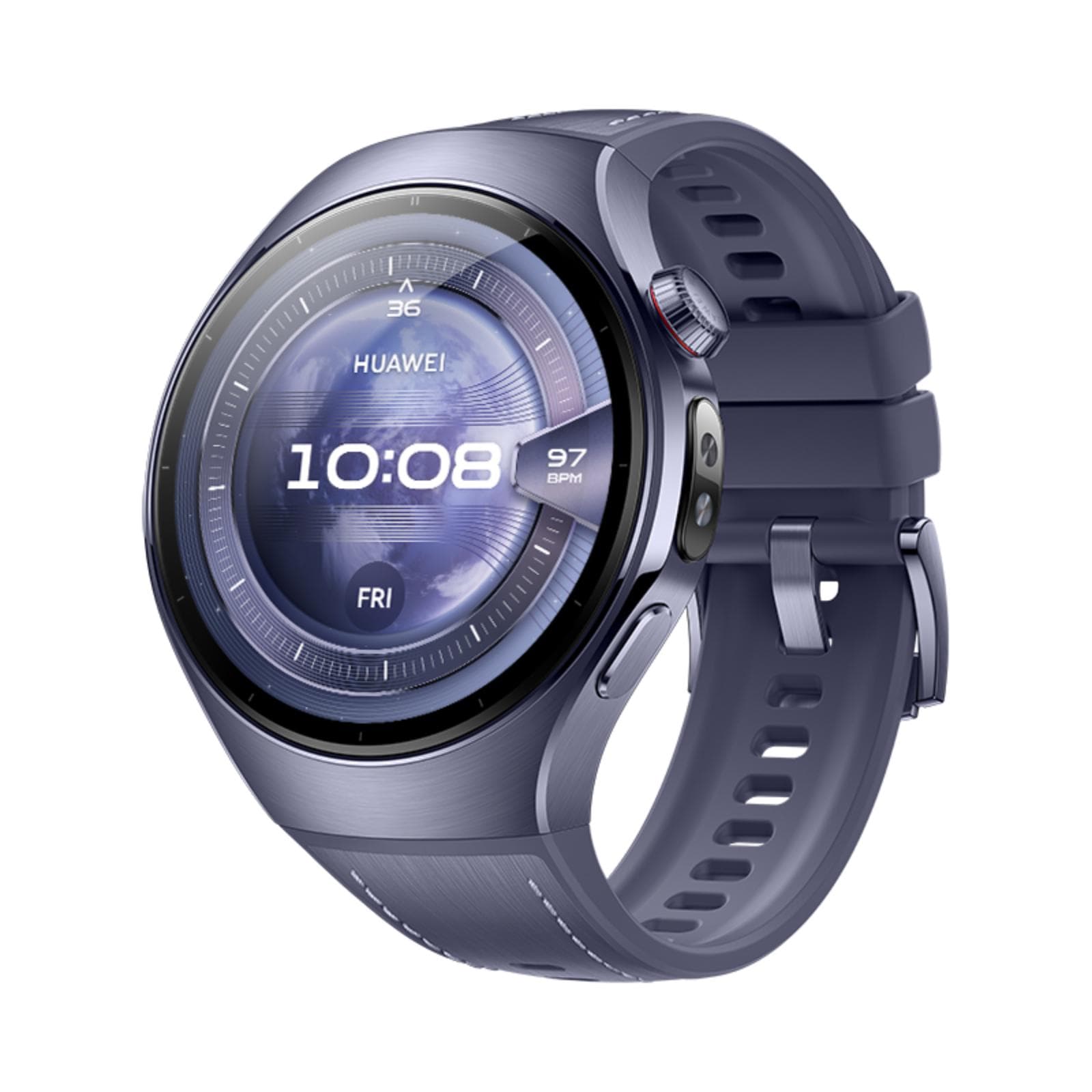

• Purple, Silver,: Aerospace-grade titanium

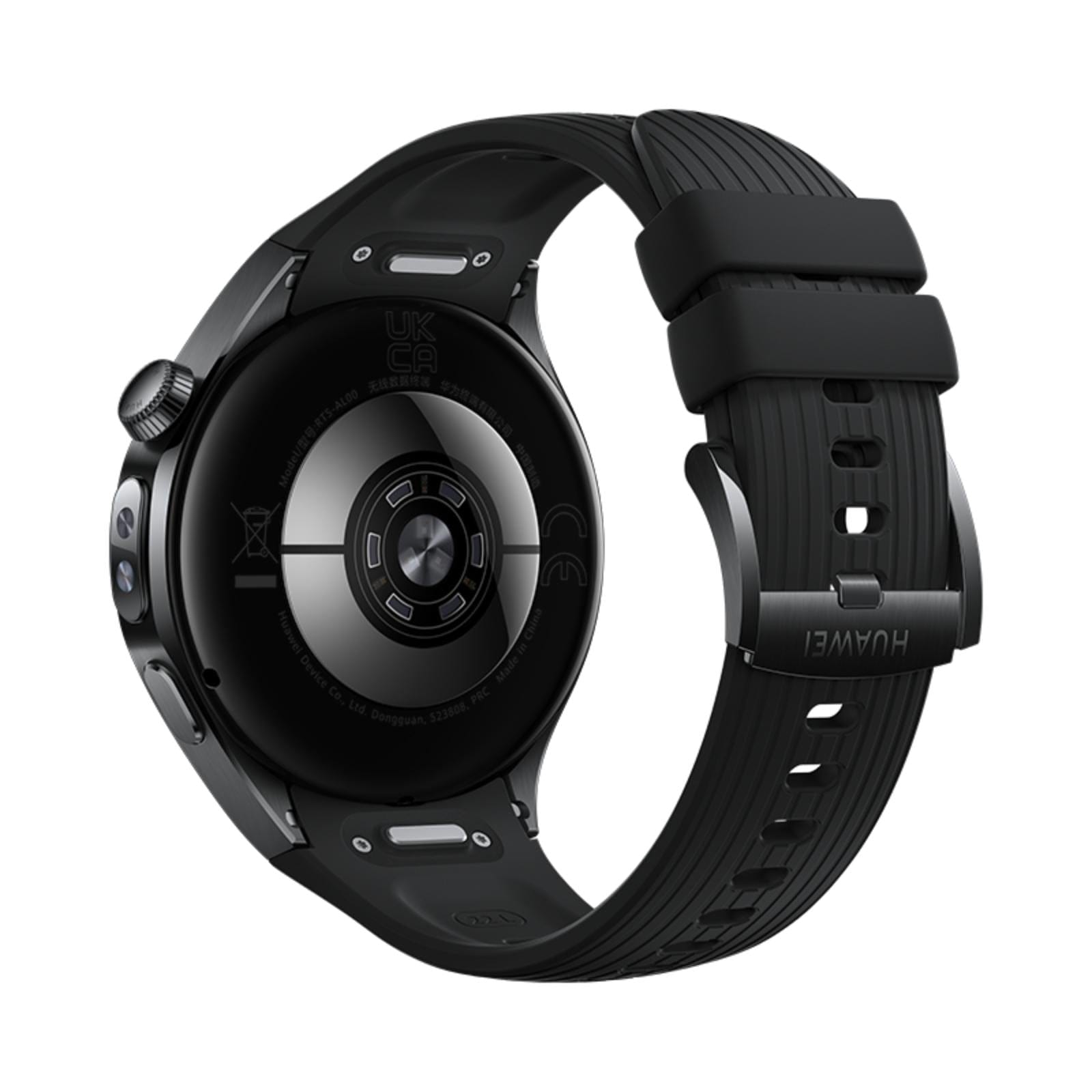

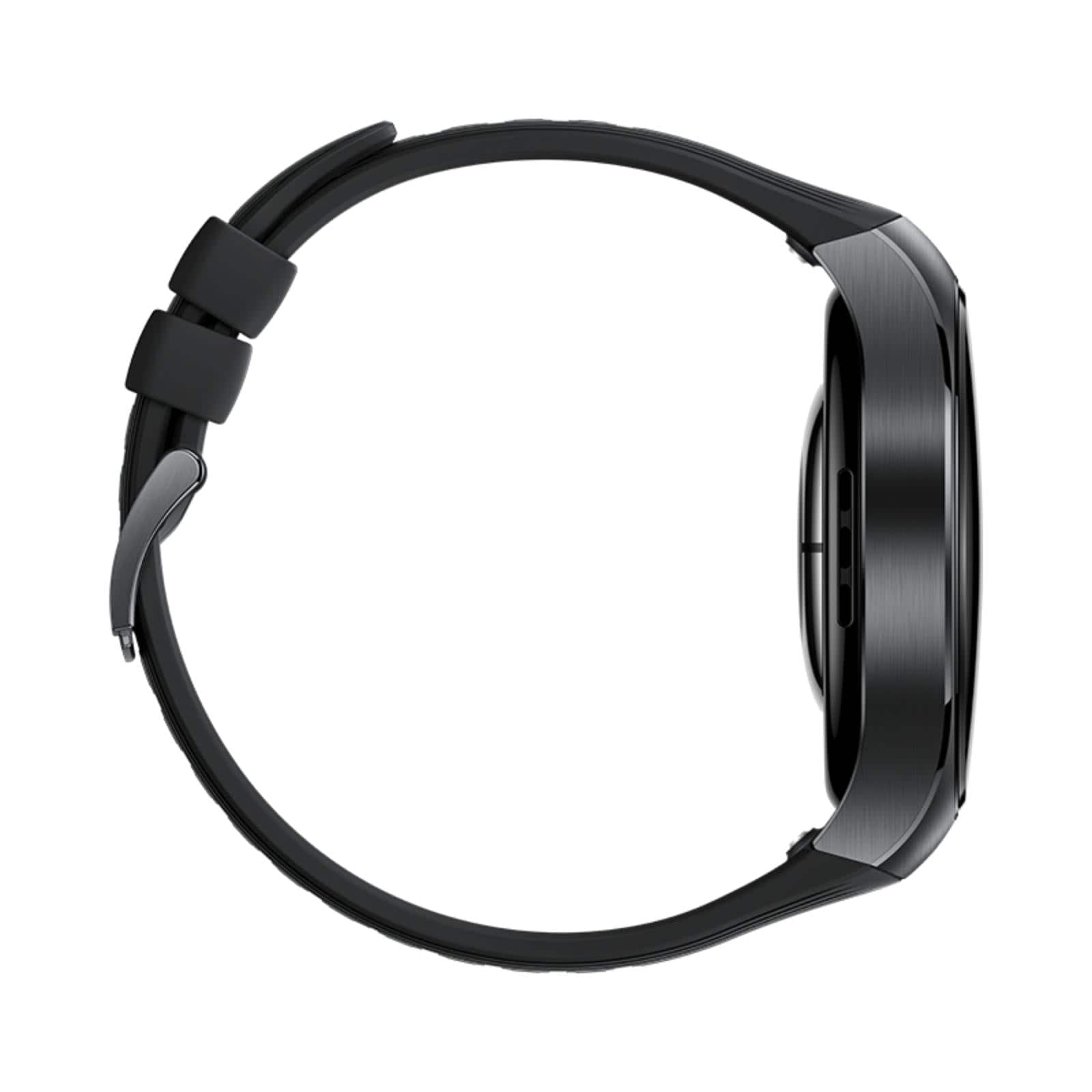

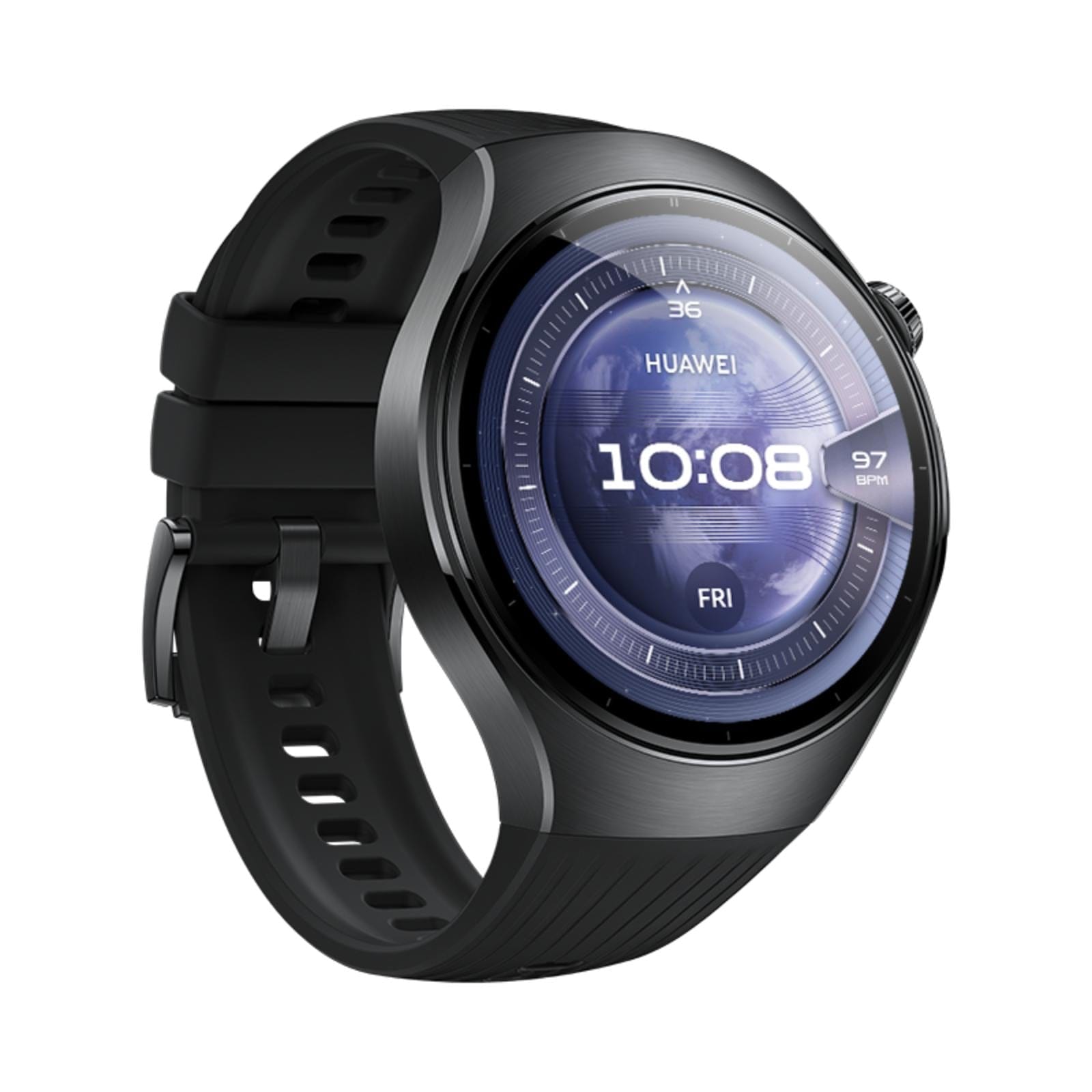

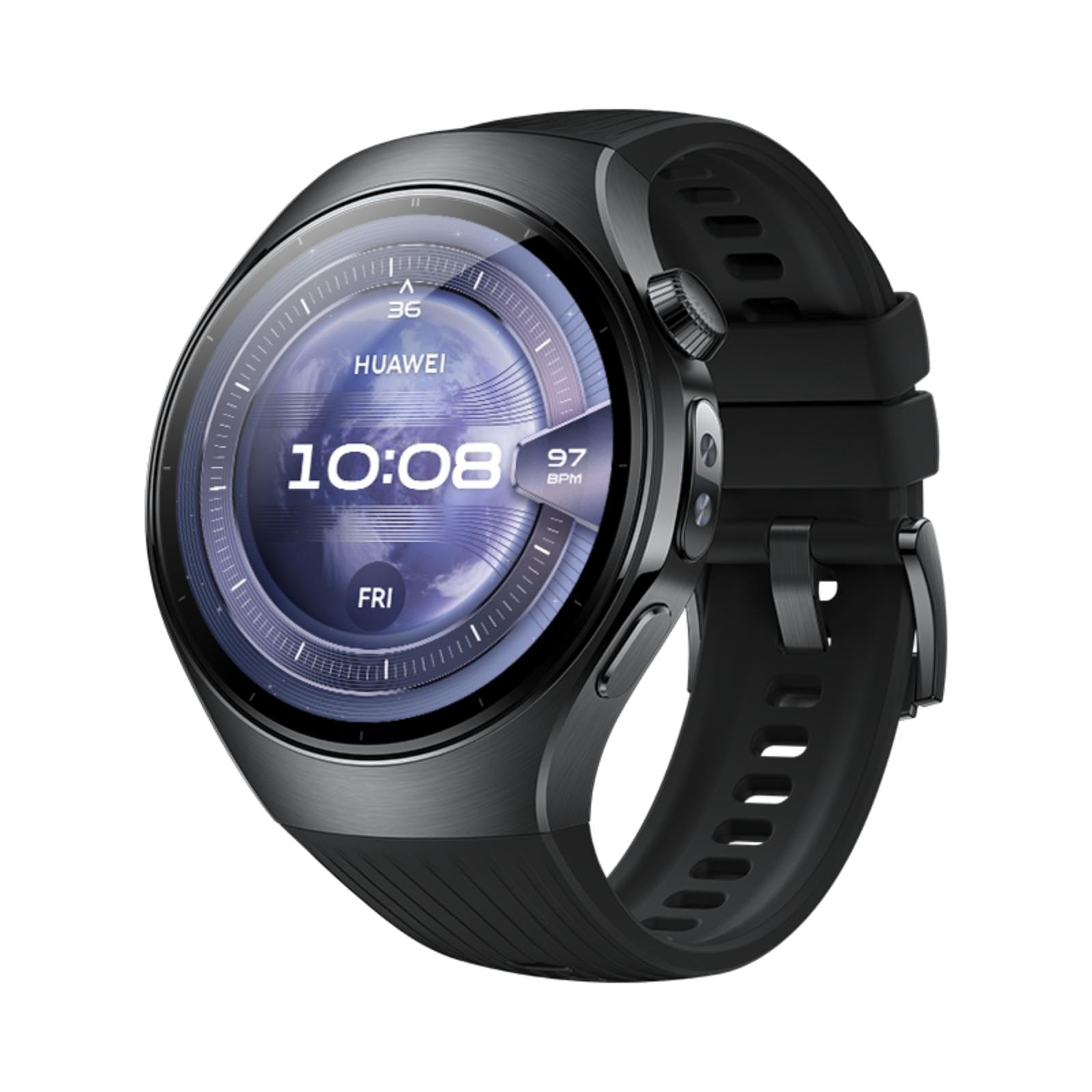

• Black: 316L stainless steel

• Purple composite strap
• Sliver titanium strap
• Black fluoroelastomer strap

• Acceleration sensor
• Gyroscope sensor
• Compass sensor
• Optical heart rate sensor 6.0
• Barometer sensor
• Ambient light sensor
• Body temperature sensor
• ECG sensor
• Depth sensor
• Tactile Sensor

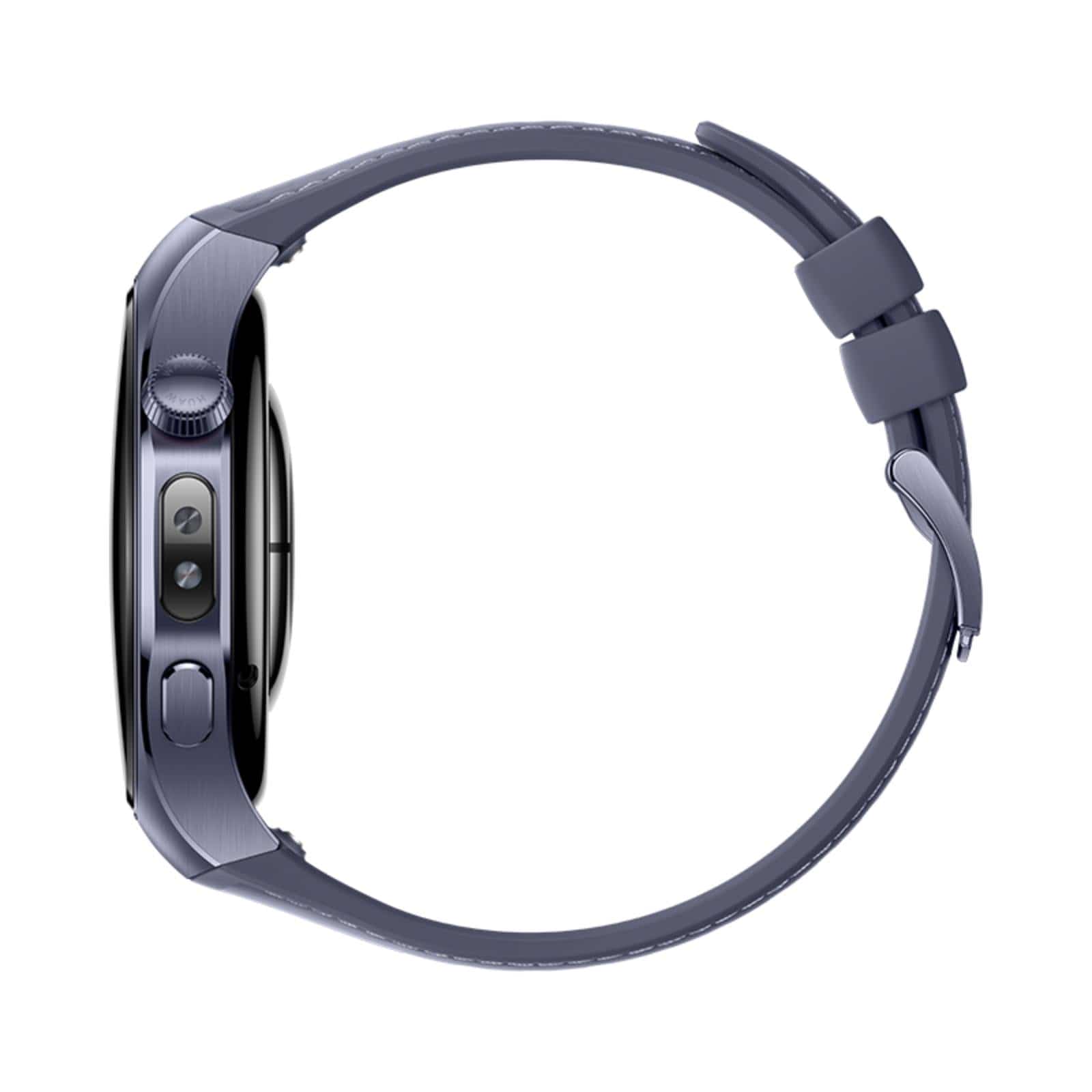

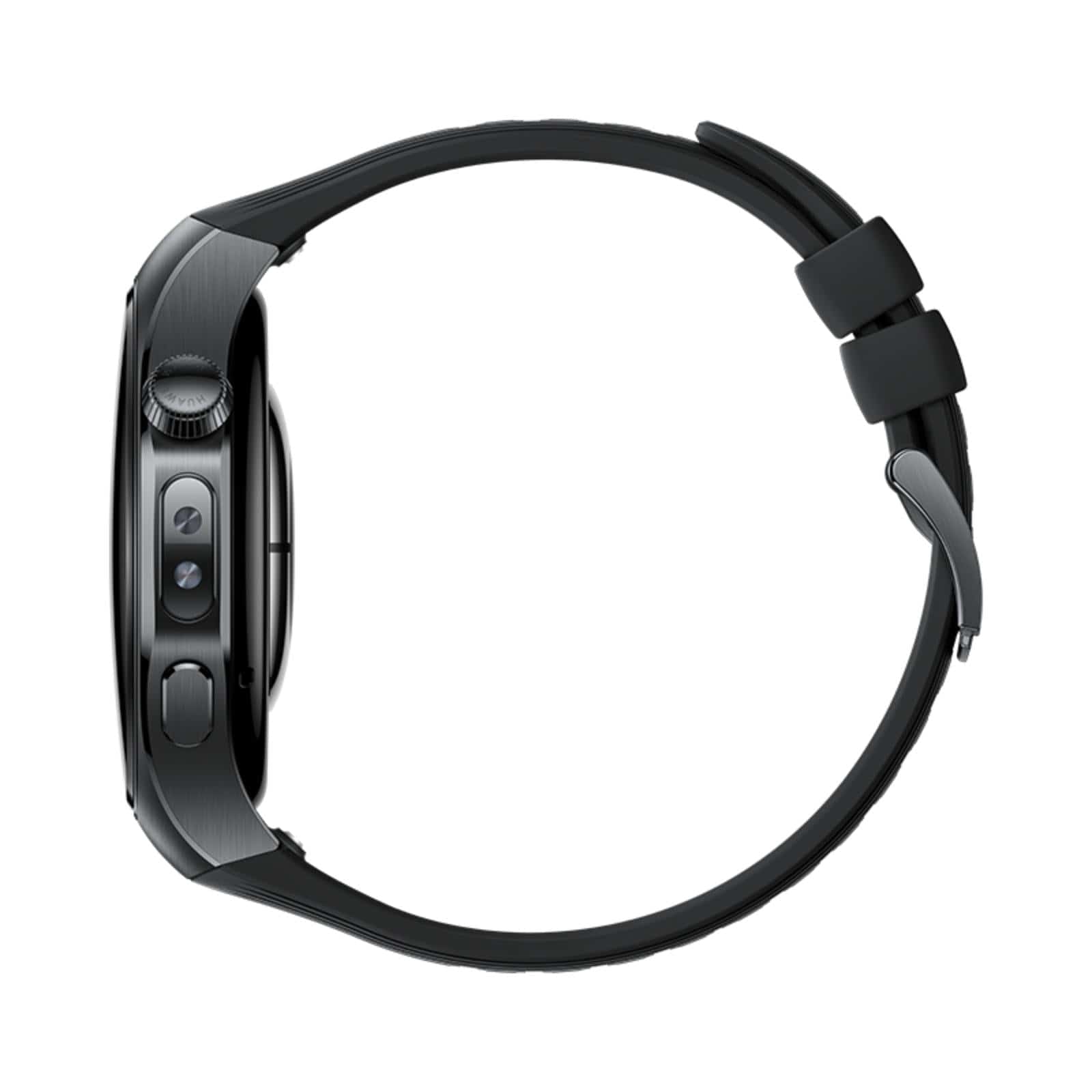

Up button (Rotating Crown) + Down button + HUAWEI X-TAP

Wireless charging

• Android 9.0 or later
• iOS 13.0 or later

 5 ATM: This product complies with 5 ATM-rated water resistance under the ISO 22810:2010 standard, which indicates that the device can withstand up to 50 meters of static water pressure for 10 minutes, but does not mean that the product is water-resistant in water that is 50-meter deep.

IP69: This product complies with the IP69-rated water resistance under the GB/T 4208-2017 standard. The IPX9 test conditions are as follows: water temperature: 80±5℃; water flow: 15±1 L/min; water pressure: 10,000±500 kPa; spray angle: 0°, 30°, 60°, and 90°, 30 seconds for each angle. This does not indicate protection during hot water showers. The product complies with the EN13319 standard for diving accessories, supports freedives at depths of up to 40 meters, and can be worn during shallow water activities such as swimming in a pool or at the beach. Remember to clean and dry the device promptly after wearing it in water activities, remove water stains from all surfaces and holes, and use the device's drainage feature to avoid undermining device performance.

The wearable device should not be worn in the following scenarios: (Damage to the device caused by immersion in liquid is not covered by the warranty if the device is worn in an inappropriate scenario.) 1. Hot showers, hot springs, saunas (steam rooms), and other activities in high-temperature and/or high-humidity environments. 2. Activities that could expose the device to shower gel, shampoo, soapy water, and any other laundry or cleaning products. If the device does come into contact with any such product, rinse and soak the device in fresh water for 30 minutes. 3. Scuba dives, technical dives, and diving activities at depths greater than 40 meters. 4. Composite vegan leather, composite woven, titanium, and ceramic straps are not designed for water activities (such as swimming) or to withstand sweat, and therefore it is recommended that other straps be used in such scenarios.


For more information about the water resistance of Huawei wearables, please visit: https://consumer.huawei.com/en/support/content/en-us15851428/. Water resistance is not permanent, and performance may deteriorate with daily wear and tear. It is recommended that you regularly take your device to an authorised Huawei service center for inspection and maintenance. For details about stores and models, please visit: https://consumer.huawei.com/en/support/content/en-us15925309/.

• NFC: Supported
• Bluetooth: BT 5.2, BR + BLE

GNSS

• L1: GPS + GLONASS + GALILEO + BeiDou + QZSS
• L5: GPS + GALILEO + BeiDou + QZSS

WLAN

• Wi-Fi 6: 2.4 GHz + 5 GHz
• IEEE 802.11a/b/g/n/ac/ax 1 × 1

• Operating temperature: 0℃ to 35℃
• Storage temperature: –20℃ to +55℃

Standard mode: 4.5 days for typical usage; 3 days with AOD on

Battery saver mode: 11 days max. battery life; 7 days for typical usage; 4.5 days with AOD on

*HUAWEI WATCH 5 46 mm (under Standard mode): When paired with an iPhone, the battery can last for up to 3 days given typical usage or up to 2 days with AOD enabled.

*Based on results from Huawei lab tests. Actual usage may vary depending on discrepancies between different models, usage habits, and environmental factors.

The typical battery life under Standard mode is tested under the following conditions: factory default settings used, 2 hours of LTE connection and 22 hours of Bluetooth connection with a phone per day, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 2 ECG measurements per day, 60 minutes of app usage per week, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The battery life under Standard mode with AOD enabled is tested under the following conditions: factory default settings used, AOD enabled, 2 hours of LTE connection and 22 hours of Bluetooth connection with a phone per day, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 2 ECG measurements per day, 60 minutes of app usage per week, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The maximum battery life under Battery saver mode is tested under the following conditions: factory default settings used, Battery saver mode enabled, 30 minutes of Bluetooth calling per week, 30 minutes of Bluetooth music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, 90 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on 200 times per day.

The typical battery life under Battery saver mode is tested under the following conditions: factory default settings used, Battery saver mode enabled, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, stress monitoring enabled, sleep apnoea features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

The battery life under Battery saver mode with AOD enabled is tested under the following conditions: factory default settings used, Battery saver mode enabled, AOD enabled, 30 minutes of Bluetooth calling per week, 30 minutes of music playback per week, heart rate monitoring always on, HUAWEI TruSleep™ on at night, stress monitoring enabled, sleep apnoea features enabled, 180 minutes of exercise on average per week, message notifications enabled (50 messages, 6 calls, and 3 alarms per day), and the device screen turned on for a total of 30 minutes per day.

Supported

Supported

Charger Voltage and Current Requirements: 5V-10V DC/2A MAX

• Watch × 1
• HUAWEI WATCH Wireless SuperCharger (2nd generation) × 1
• Quick Start Guide & Safety Information & Warranty Card × 1
