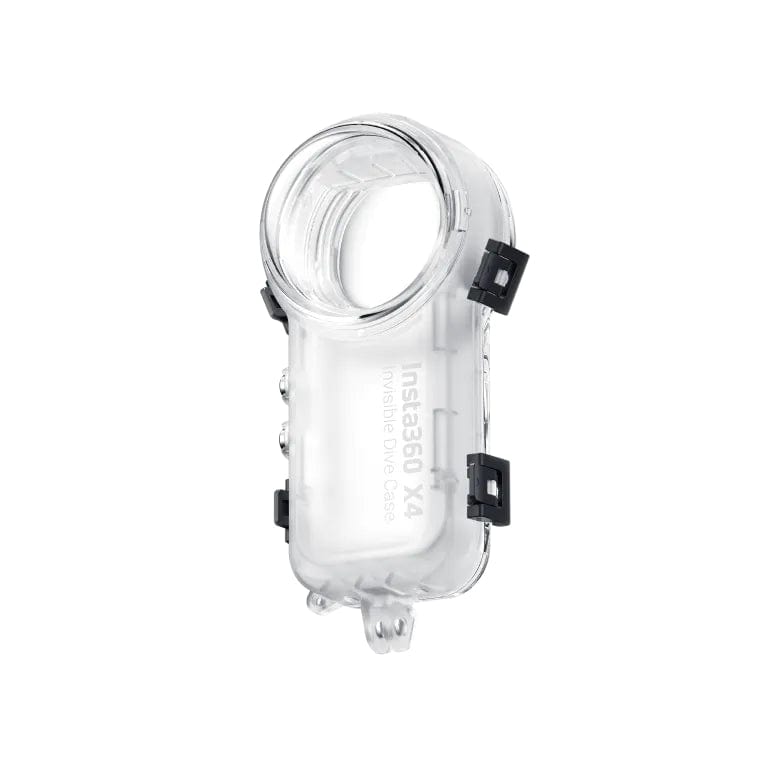

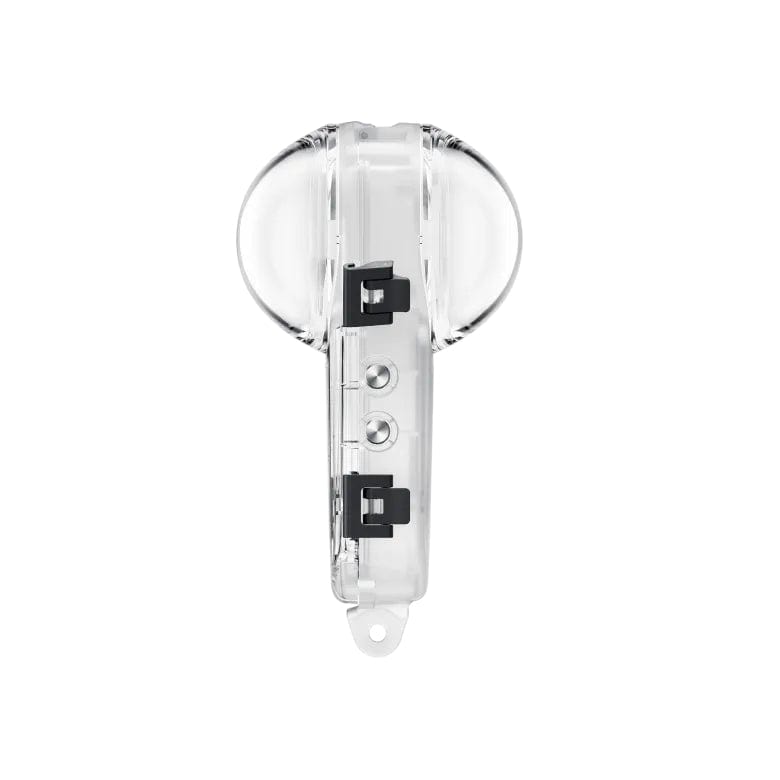

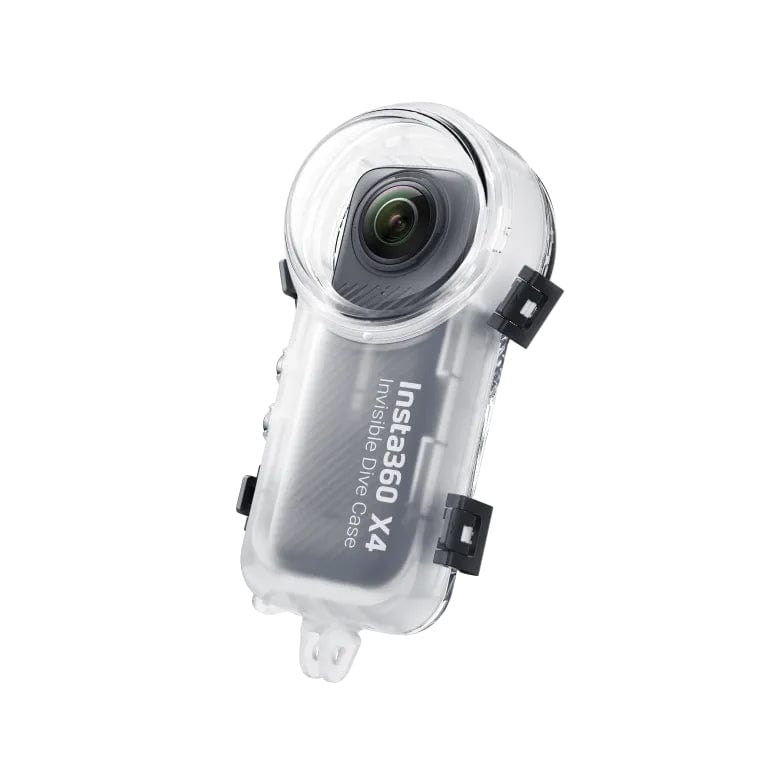

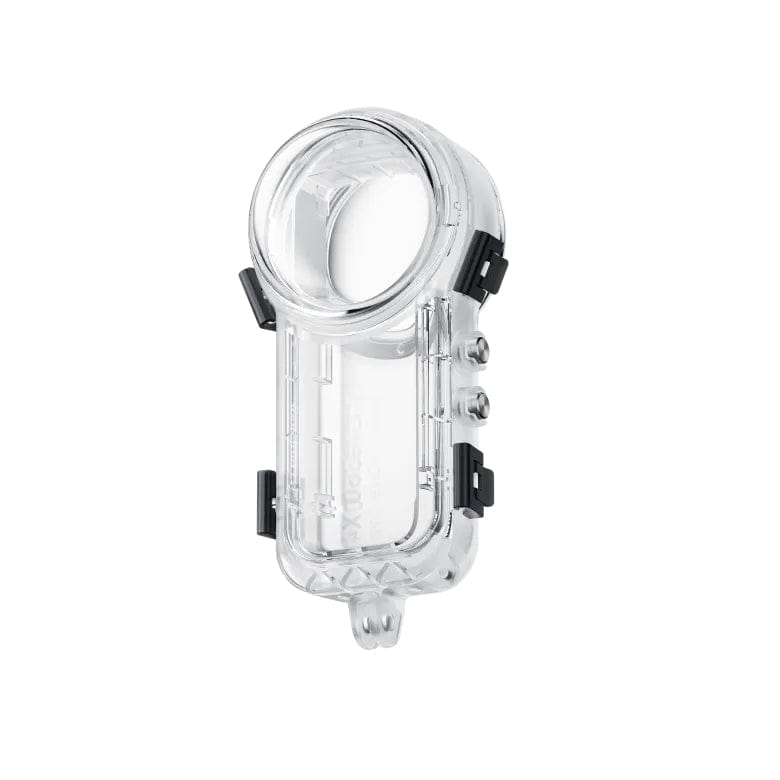

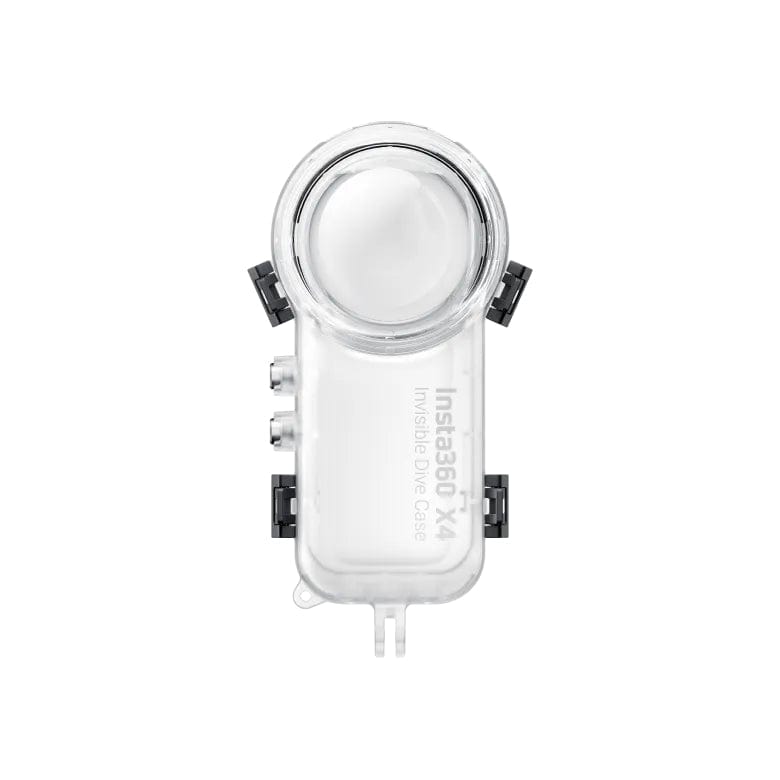

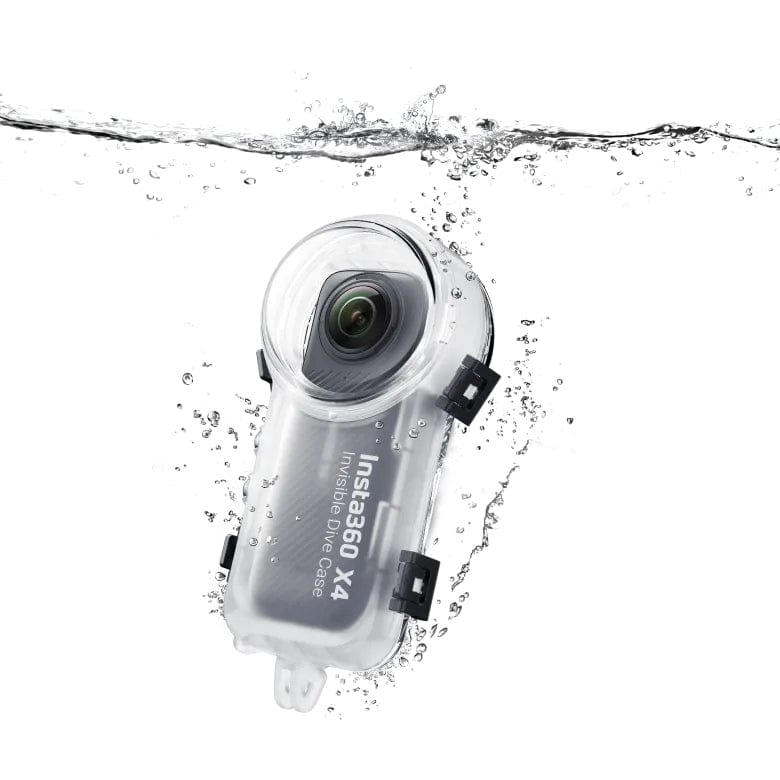

Insta360 X4 Invisible Dive Case

What's in the Box?

• • 1 x X4 Invisible Dive Case
  • 12 x Anti-Fog Inserts
  • 1 x 3-Prong to 1/4" Adapter
  • 1 x 1/4" Screw
  • 1 x Thumb Screw Mesh
  • 1 x Dive Case Carry Pouch
  • 1 x Lens Cloth
  • 4 x Stability Pads
  • 1 x Instructions & Warranty & Guide Card

• Dimensions	164.9 x 97.7 x 89.2mm (6.5 x 3.5 x 3.5in)
  Maximum Depth	50m (164ft)
  Weight	155g (5.5oz)



How to Use

• 1. Open the Case

  Life the buckle as shown below, then pull it down to remove the hook. Repeat with the other 3 buckles, then open the Dive Case



  2. Attach the Anti-Fog Inserts

  Ensure that the anti-fog inserts are inserted as shown below.

  Note: When using third-part anti-fog inserts, ensure that the size is within 37.1 x 19 x 1.2mm. If the insert is too large, it will case water leakage & potentially damage the camera





  3. Insert the Camera

  Note:

  • Before inserting the camera, you must activate Dive Case Mode. Swipe down on the camera touchscreen to open the shortcut menu, tap the icon or long press the Q button or to enter Dive Case Mode. Once in Dive Case Mode, press the Power Button to switch shooting modes & the Q Button to start or stop shooting.
  • Also, be sure that the camera lenses & the Dive Case interior are clean & free of dirt or dust
  • When inserting the camera, be sure to remove any preinstalled lens guards & take care not to scratch the lens.



  4. Close the Case

  To close the Dive Case, latch the buckle onto the case's hook & firmly push down until it clicks.

  Note:

  • Ensure the Dive Case is firmly closed. Check that the parts of the Dive Case in contact with its rubber seal are free of dirt or dust
  • For best results, keep the Dive Case Lenses clean





  5. Other Accessories

  If you are attaching the diving housing to other accessories, such as the floating hand grip, you can equip the screw connection points with a stabilizing ring to secure the mounting adapter better & minimize the risk that accessory parts will come loose or the camera will be damaged by vibrations



  To achieve the invisible selfie stick effect, always keep the Invisible Selfie Stick & Dive Case in a straight line. Use the wrench to tighten the 1/4" Thumb Screw to reduce the impact of the water flow on the alignment



  6. Stitching

  For best results when shooting underwater, it's recommended to keep the Dive Case's lenses perpendicular to the surface of the water (so neither lens is facing upwards). After shooting, open the files in the insta360 app or Studio & they will be automatically selected to stitch for Dive Case.

  Note: When the camera is out of the Dive Case, exit Dive Case Mode to ensure optimal image quality. Swipe up on the camera touchscreen or long press the Q button to exit Dive Case Mode

Notes

• • Do not open the Dive Case while it is wet.
  • After using the product in seawater, take out X4 and soak the Dive Case in fresh water for at least 10 minutes (ensure the Dive Case is firmly closed beforehand). If the Dive Case is not rinsed after use in seawater, residual salt may crystalize in gaps. These salt crystals will not dissolve in water and can lift the rubber seal and cause water leakage. After soaking the Dive Case in fresh water, rinse it under gently flowing tap water. Never apply a strong water stream from a single direction, as it may cause water leakage.
  • Ensure that the dive case is firmly closed before washing. After washing, wipe away any water droplets remaining on the surface with a soft, dry cloth and leave to dry. Ensure there is no sand on the Dive Case before drying as sand may scratch the product surface when wiped with a cloth. Do not dry with a hair dryer or any other heat source.
  • Do not store the Dive Case in a hot or humid environment. For example, do not leave it inside a hot car.
  • Do not wash the Dive Case with soap, neutral detergent, or alcohol cleaning products. This may degrade the waterproofing performance.
  • Store the product in a dry, well-ventilated location.
